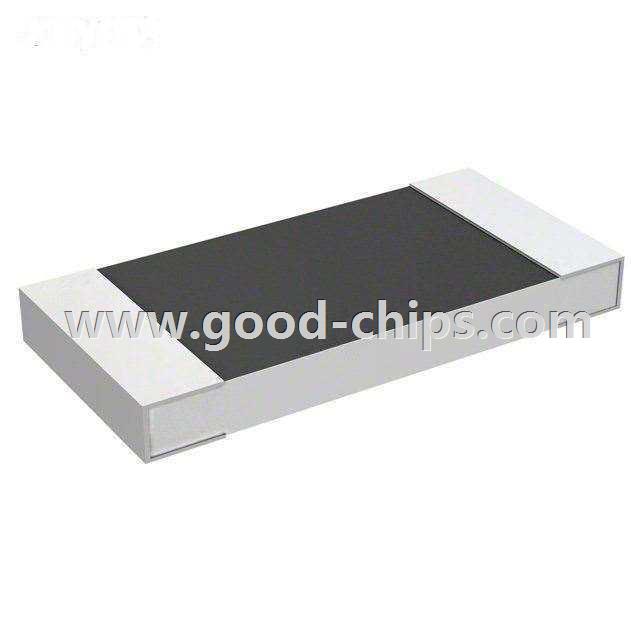

Manufacturer Part Number: | CSR2010JTR470 |
---|---|
Manufacturer: | Stackpole Electronics Inc. |
Product Category: | Chip Resistor - Surface Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RES SMD 0.47 OHM 5% 1W 2010 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CSR2010JTR470 Datasheet |
Internal Part Number | 898-CSR2010JTR470 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Current Sensing Resistor | |
RoHS Information | RoHS Compliance | |
PCN Part Number | Global Part Number 9/Aug/2010 | |
Category | Resistors | |
Family | Chip Resistor - Surface Mount | |
Manufacturer | Stackpole Electronics Inc. | |
Series | CSR | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Resistance (Ohms) | 0.47 | |
Tolerance | ±5% | |
Power (Watts) | 1W | |
Composition | Thick Film | |
Features | Current Sense | |
Temperature Coefficient | ±100ppm/°C | |
Operating Temperature | -55°C ~ 155°C | |
Package / Case | 2010 (5025 Metric) | |
Supplier Device Package | 2010 | |
Size / Dimension | 0.197" L x 0.100" W (5.00mm x 2.54mm) | |
Height | 0.026" (0.65mm) | |
Number of Terminations | 2 | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CSR2010JTR470 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CSR2010JTR470 is in stock for immediate shipping now. We are the distributor of Stackpole Electronics Inc. all series components. The condition of CSR2010JTR470 is new and unused, you can buy CSR2010JTR470 Stackpole Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSR2010JTR470.
