Manufacturer Part Number: | CSD13202Q2 |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 12V 76A 6SON |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CSD13202Q2 Datasheet |
Internal Part Number | 898-CSD13202Q2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Marking Standardization 29/Jan/2015 | |
Manufacturer Product Page | CSD13202Q2 Specifications | |
Online Catalog | N-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Texas Instruments | |
Series | NexFET™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 12V | |
Current - Continuous Drain (Id) @ 25°C | 22A (Ta) | |
Rds On (Max) @ Id, Vgs | 9.3 mOhm @ 5A, 4.5V | |
Vgs(th) (Max) @ Id | 1.1V @ 250µA | |
Gate Charge (Qg) @ Vgs | 6.6nC @ 4.5V | |
Input Capacitance (Ciss) @ Vds | 997pF @ 6V | |
Power - Max | 2.7W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

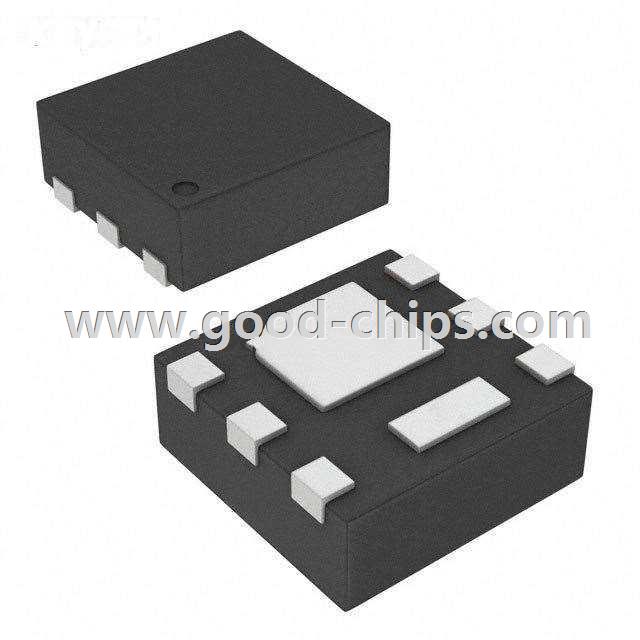

Package / Case | 6-VDFN Exposed Pad | |
Supplier Device Package | 6-WSON (2x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CSD13202Q2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CSD13202Q2 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of CSD13202Q2 is new and unused, you can buy CSD13202Q2 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSD13202Q2.
