Manufacturer Part Number: | GSAP 15-R |
---|---|
Manufacturer: | Bel Fuse Inc. |
Product Category: | Fuses |
Available Quantity: | 10605 Pieces |
Unit Price: | Quote by Email |

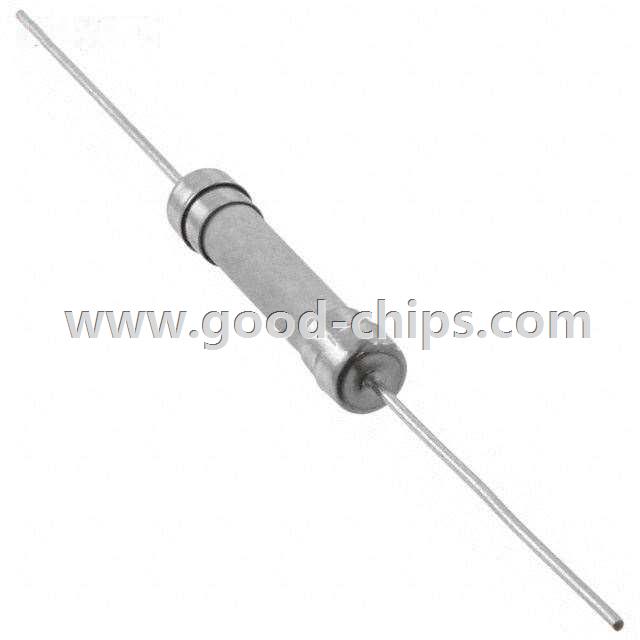

Description: | FUSE CERAMIC 15A 125VAC 3AB 3AG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | GSAP 15-R Datasheet |
Internal Part Number | 898-GSAP 15-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Compliance | |
Featured Product | Power Solutions and Protection | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | GSAP Series | |
Category | Circuit Protection | |
Family | Fuses | |
Manufacturer | Bel Fuse Inc. | |
Series | GSAP | |
Packaging | Bulk | |
Part Status | Active | |
Fuse Type | Cartridge, Ceramic | |
Current Rating | 15A | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Response Time | Slow | |
Package / Case | 3AB, 3AG, 1/4" x 1-1/4" (Axial) | |
Mounting Type | Through Hole | |
Breaking Capacity @ Rated Voltage | 10kA | |
Melting I²t | 2123 | |
Approvals | CE, CSA, cURus, PSE | |
Operating Temperature | -55°C ~ 125°C | |
Color | - | |
Size / Dimension | 0.272" Dia x 1.280" L (6.90mm x 32.50mm) | |
DC Cold Resistance | 0.006 Ohm | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | GSAP 15-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
GSAP 15-R is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of GSAP 15-R is new and unused, you can buy GSAP 15-R Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GSAP 15-R.
