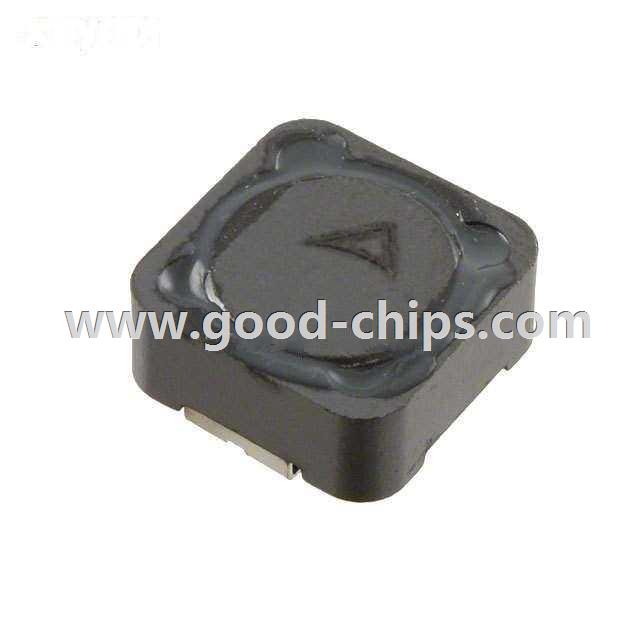

Manufacturer Part Number: | B82477G2103M |
---|---|
Manufacturer: | EPCOS (TDK) |
Product Category: | Fixed Inductors |
Available Quantity: | 11410 Pieces |
Unit Price: | Quote by Email |
Description: | 10µH Shielded Wirewound Inductor 4A 25 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B82477G2103M Datasheet |
Internal Part Number | 898-B82477G2103M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | B82477G2 Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | EPCOS (TDK) | |
Series | B82477G2 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 10µH | |
Tolerance | ±20% | |
Current Rating | 4A | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 25 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 1kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.484" L x 0.484" W (12.30mm x 12.30mm) | |
Height - Seated (Max) | 0.236" (6.00mm) | |
Standard Package | 600 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B82477G2103M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B82477G2103M is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B82477G2103M is new and unused, you can buy B82477G2103M EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B82477G2103M.
