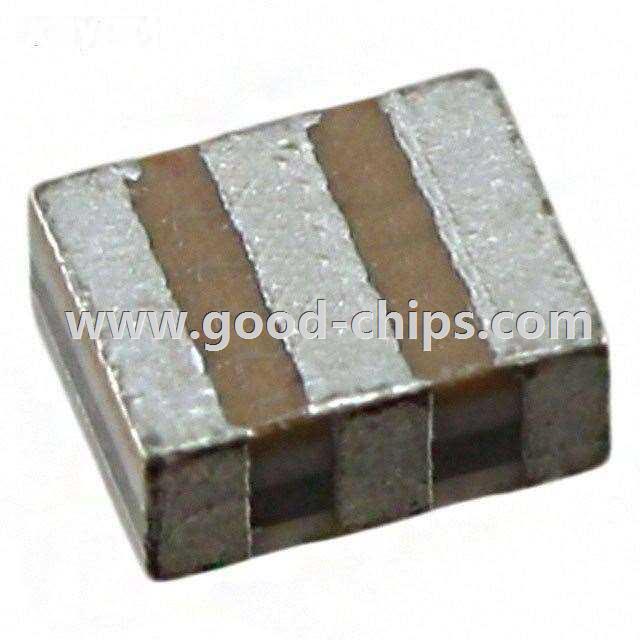

Manufacturer Part Number: | AWSCR-40.00CW-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Resonators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 40MHz Ceramic Resonator Built in Capacitor 5pF ±0.2% 50 Ohm -25°C ~ 85°C Surface Mount |
Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AWSCR-40.00CW-T Datasheet |
Internal Part Number | 898-AWSCR-40.00CW-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AWSCR-CW.pdf AWSCR-CW.stp | |
Online Catalog | AWSCR-CW Series | |
Category | Crystals and Oscillators | |
Family | Resonators | |
Manufacturer | Abracon LLC | |
Series | AWSCR-CW | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Ceramic | |
Frequency | 40MHz | |
Frequency Stability | ±0.2% | |
Frequency Tolerance | ±0.5% | |
Features | Built in Capacitor | |
Capacitance | 5pF | |
Impedance | 50 Ohm | |
Operating Temperature | -25°C ~ 85°C | |
Mounting Type | Surface Mount | |
Package / Case | 3-SMD, Non-Standard | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height | 0.047" (1.20mm) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AWSCR-40.00CW-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AWSCR-40.00CW-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AWSCR-40.00CW-T is new and unused, you can buy AWSCR-40.00CW-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AWSCR-40.00CW-T.
