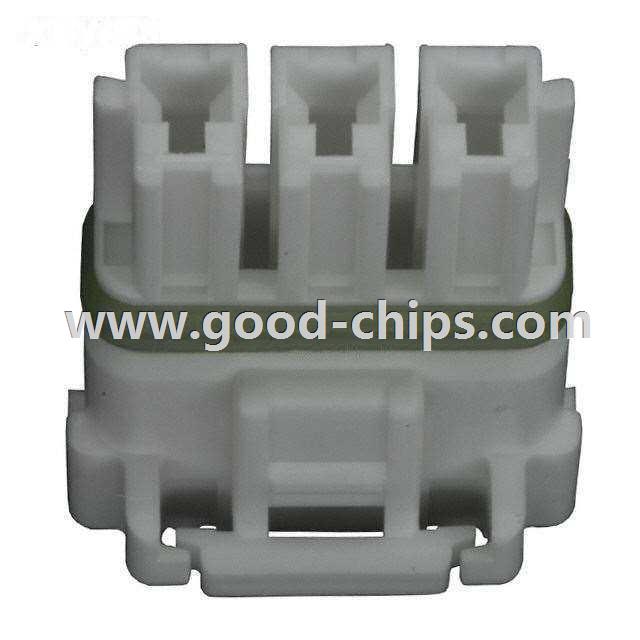

| Manufacturer Part Number: | 03R-WPJV-1-SM(NN) |
|---|---|
| Manufacturer: | JST Sales America Inc. |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3 Position Rectangular Housing Connector Receptacle Natural 0.197" (5.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 03R-WPJV-1-SM(NN) Datasheet |
| Internal Part Number | 898-03R-WPJV-1-SM(NN) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | WPJ Connector | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | JST Sales America Inc. | |
| Series | WPJ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 3 | |
| Pitch | 0.197" (5.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | Latch Lock | |
| Color | Natural | |
| Features | JIS C 0920 Grade Level 7 | |
| Note | Contacts Not Provided | |
| Standard Package | 576 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 03R-WPJV-1-SM(NN) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
03R-WPJV-1-SM(NN) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 03R-WPJV-1-SM(NN) is new and unused, you can buy 03R-WPJV-1-SM(NN) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 03R-WPJV-1-SM(NN).
