| Manufacturer Part Number: | ARJ11B-MDSAO-LU2 |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Modular Connectors - Jacks With Magnetics |
| Available Quantity: | 9125 Pieces |
| Unit Price: | Quote by Email |

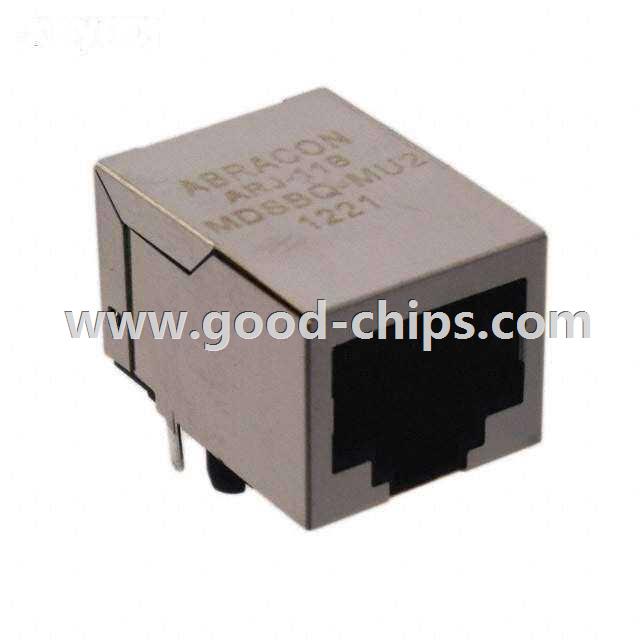

| Description: | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-T |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ARJ11B-MDSAO-LU2 Datasheet |
| Internal Part Number | 898-ARJ11B-MDSAO-LU2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ARJ11B.pdf ARJ11B.stp | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks With Magnetics | |
| Manufacturer | Abracon LLC | |
| Series | ARJ11B | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 10/100 Base-T | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.545" (13.84mm) | |
| LED Color | Does Not Contain LED | |
| Number of Cores per Jack | 5 | |
| Shielding | Shielded | |
| Features | Board Lock | |
| Tab Direction | Down | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 6µin (0.152µm) | |
| Shield Material | - | |
| Housing Material | - | |
| Operating Temperature | 0°C ~ 70°C | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ARJ11B-MDSAO-LU2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ARJ11B-MDSAO-LU2 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ARJ11B-MDSAO-LU2 is new and unused, you can buy ARJ11B-MDSAO-LU2 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ARJ11B-MDSAO-LU2.
