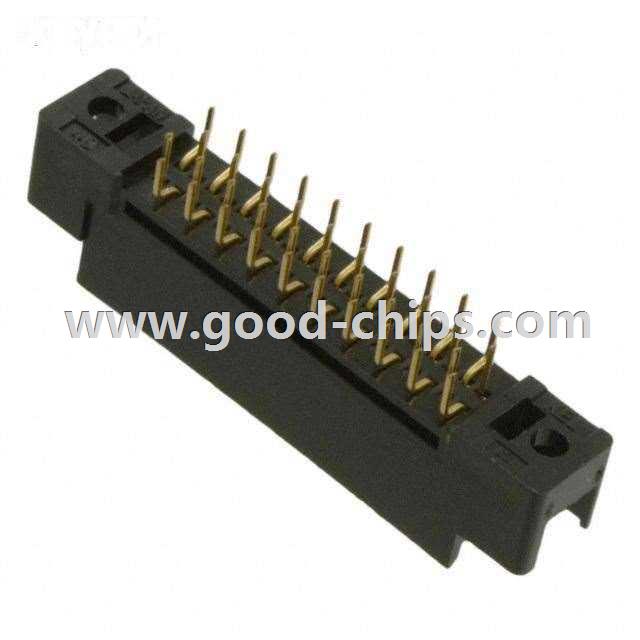

Manufacturer Part Number: | P50E-040P1-S1-EA |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 40 Positions Plug Connector 0.050" (1.27mm) Through Hole Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | P50E-040P1-S1-EA Datasheet |
Internal Part Number | 898-P50E-040P1-S1-EA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Interconnect Mating Guide | |
3D Model | P50E-040P1-S1-XX.stp P50E-040P1-S1-XX.igs P50E-040P1-S1-XX.x_t | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | 3M | |
Series | Pak 50, P50E | |
Packaging | Bulk | |
Part Status | Active | |
Contact Type | Center Strip Contact | |
Connector Type | Plug | |
Number of Positions | 40 | |
Number of Positions Loaded | All | |
Pitch | 0.050" (1.27mm) | |
Number of Rows | 2 | |
Row Spacing | - | |
Contact Mating Length | - | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | Latch Holder | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 10µin (0.25µm) | |
Color | Black | |
Standard Package | 204 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | P50E-040P1-S1-EA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
P50E-040P1-S1-EA is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of P50E-040P1-S1-EA is new and unused, you can buy P50E-040P1-S1-EA 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P50E-040P1-S1-EA.
