| Manufacturer Part Number: | ADM00467 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9021 Pieces |
| Unit Price: | Quote by Email |

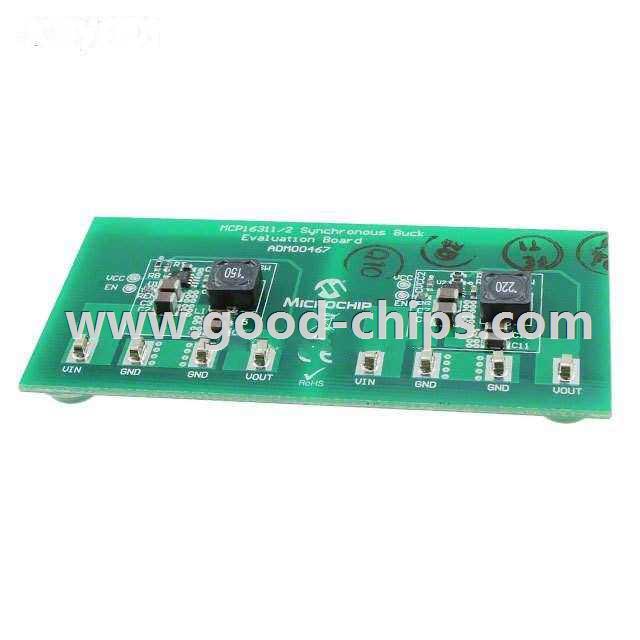

| Description: | MCP16311, MCP16312 - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00467 Datasheet |
| Internal Part Number | 898-ADM00467 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | MCP16311/2 Eval Brd (ADM00467) Gerbers MCP16311/2 Eval Brd (ADM00467) Schematics MCP16311/2 Eval Brd (ADM00467) BOM Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP16311 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 2, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V, 5V | |
| Current - Output | 1A, 1A | |
| Voltage - Input | 4 V ~ 30 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 500kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | MCP16311, MCP16312 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00467 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00467 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00467 is new and unused, you can buy ADM00467 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00467.
