| Manufacturer Part Number: | FDMC86106LZ |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 100V 3.3A POWER33 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDMC86106LZ Datasheet |
| Internal Part Number | 898-FDMC86106LZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | FDMC86106LZ 13/Jun/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 3.3A (Ta), 7.5A (Tc) | |
| Rds On (Max) @ Id, Vgs | 103 mOhm @ 3.3A, 10V | |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 6nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 310pF @ 50V | |
| Power - Max | 2.3W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

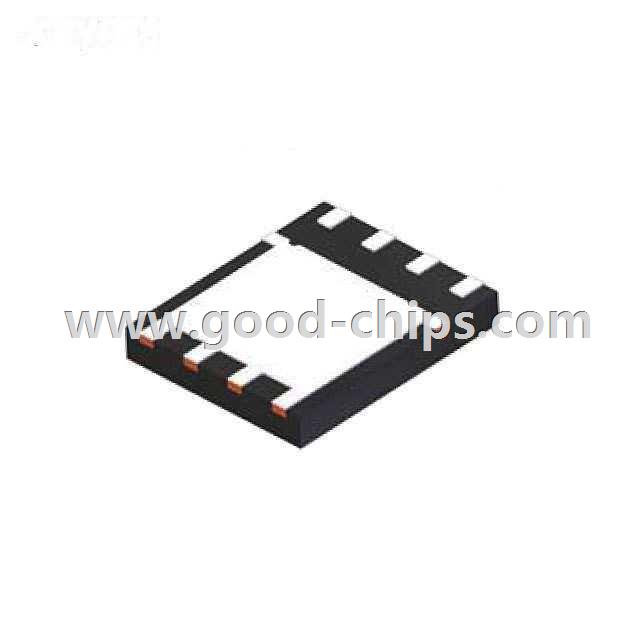

| Package / Case | 8-PowerWDFN | |
| Supplier Device Package | 8-MLP (3.3x3.3) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDMC86106LZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDMC86106LZ is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMC86106LZ is new and unused, you can buy FDMC86106LZ Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMC86106LZ.
