| Manufacturer Part Number: | AC164130 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

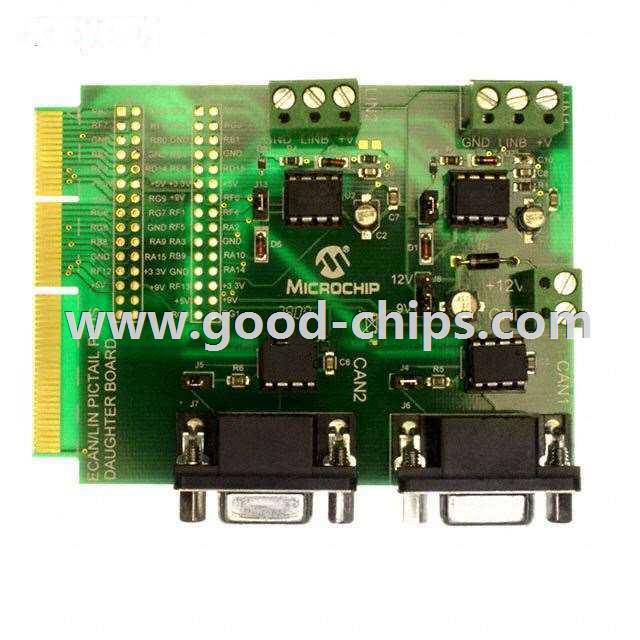

| Description: | MCP2021, MCP2551 PICtail™ Plus Series Interface, CAN, ECAN LIN Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AC164130 Datasheet |
| Internal Part Number | 898-AC164130 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | PICtail™ Plus | |
| Part Status | Obsolete | |
| Main Purpose | Interface, CAN, ECAN LIN | |
| Embedded | No | |
| Utilized IC / Part | MCP2021, MCP2551 | |
| Primary Attributes | 2 CAN and 2 LIN Transceivers, 4 Socketed IC's | |
| Secondary Attributes | Requires Explorer 16 Board | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AC164130 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AC164130 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of AC164130 is new and unused, you can buy AC164130 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AC164130.
