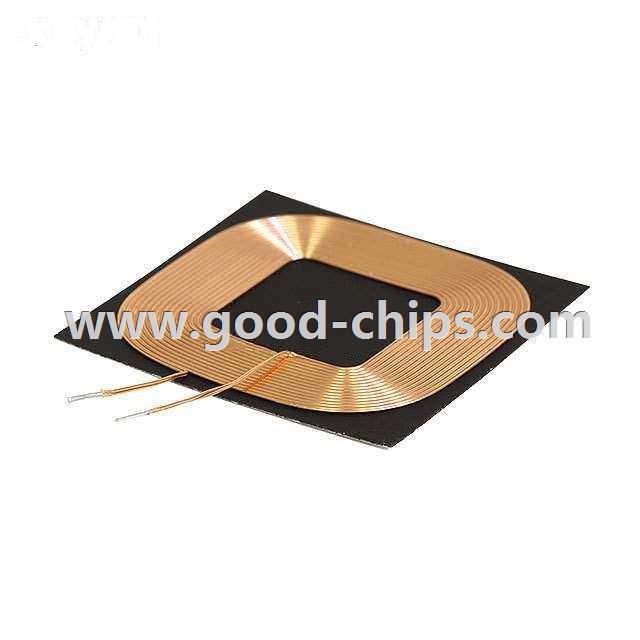

| Manufacturer Part Number: | SWC4242KB120-100 |
|---|---|
| Manufacturer: | Laird-Signal Integrity Products |
| Product Category: | Wireless Charging Coils |
| Available Quantity: | 9580 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1 Coil, 1 Layer 12.5µH Wireless Charging Coil Receiver 240 mOhm Max |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SWC4242KB120-100 Datasheet |
| Internal Part Number | 898-SWC4242KB120-100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wireless Charging Modules | |
| Online Catalog | Laird-Signal Integrity Products | |
| Category | Inductors, Coils, Chokes | |
| Family | Wireless Charging Coils | |
| Manufacturer | Laird-Signal Integrity Products | |
| Series | SWC | |
| Part Status | Active | |
| Function | Receiver | |
| Type | 1 Coil, 1 Layer | |
| Inductance | 12.5µH | |
| Tolerance | ±10% | |
| Current Rating | - | |
| Current - Saturation | - | |
| DC Resistance (DCR) | 240 mOhm Max | |
| Q @ Freq | 20 @ 100kHz | |
| Frequency - Self Resonant | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Size / Dimension | * | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SWC4242KB120-100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SWC4242KB120-100 is in stock for immediate shipping now. We are the distributor of Laird-Signal Integrity Products all series components. The condition of SWC4242KB120-100 is new and unused, you can buy SWC4242KB120-100 Laird-Signal Integrity Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SWC4242KB120-100.
