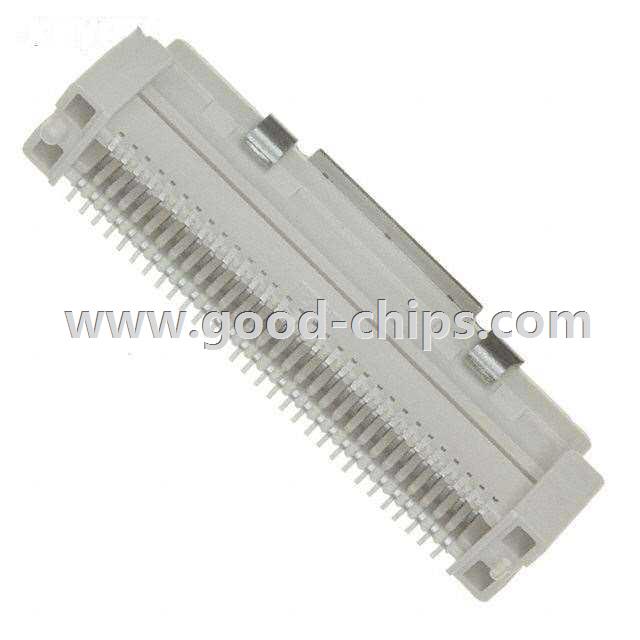

61082-062402LF

61082-062402LF
Manufacturer Part Number:61082-062402LF
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:60 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 61082-062402LF Datasheet
61082-062402LF´s Parameters
Internal Part Number898-61082-062402LF
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesBergstak Overview
Video FileMezzselect Tool - Another Geek Moment
Featured ProductBergstak® 0.8mm Mezzanine Connectors
MezzSelect
PCN Design/SpecificationRefinements/Enhancements 11/May/2009
BTB Design 21/Feb/2014
PCN Assembly/OriginBergStak 0.8mm 29/Oct/2011
BergStak 0.8mm 10/May/2012
PCN OtherBergstak 0.8mm ReceptacleMaterial28/Nov/2014
Online Catalog BergStak®, MezzSelect™
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerAmphenol FCI
SeriesBergStak®, MezzSelect™
PackagingTape & Reel (TR)
Part StatusActive
Connector TypeReceptacle, Outer Shroud Contacts
Number of Positions60
Pitch0.031" (0.80mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness8µin (0.20µm)
Mated Stacking Heights9mm, 10mm, 11mm, 12mm
Height Above Board0.303" (7.70mm)
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement Part61082-062402LF
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

61082-062402LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 61082-062402LF is new and unused, you can buy 61082-062402LF Amphenol FCI with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 61082-062402LF.
