| Manufacturer Part Number: | 4N45#300 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Darlington with Base Output 3750Vrms 1 Channel 6-SMD |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 4N45#300 Datasheet |
| Internal Part Number | 898-4N45#300 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Mult Device Design Changes 10/Nov/2015 Molding Chg 08/Feb/2016 | |
| PCN Packaging | Multiple Devices Marking/Labeling 07/Aug/2013 Marking/Labeling Revision B 14/Jan/2014 | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 3750Vrms | |
| Current Transfer Ratio (Min) | 200% @ 10mA | |
| Current Transfer Ratio (Max) | 1000% @ 10mA | |
| Turn On / Turn Off Time (Typ) | 5µs, 150µs | |
| Rise / Fall Time (Typ) | - | |
| Input Type | DC | |
| Output Type | Darlington with Base | |
| Voltage - Output (Max) | 7V | |
| Current - Output / Channel | 60mA | |
| Voltage - Forward (Vf) (Typ) | 1.4V | |
| Current - DC Forward (If) (Max) | 20mA | |
| Vce Saturation (Max) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

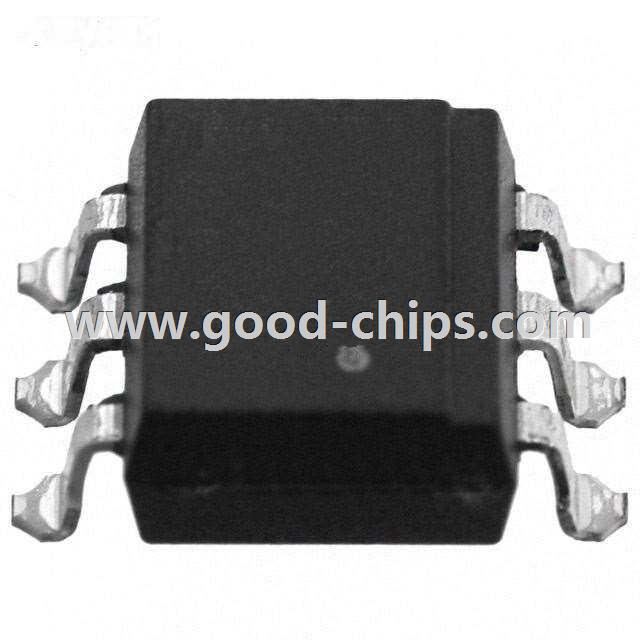

| Package / Case | 6-SMD, Gull Wing | |
| Supplier Device Package | 6-SMD | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 4N45#300 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
4N45#300 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of 4N45#300 is new and unused, you can buy 4N45#300 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4N45#300.
