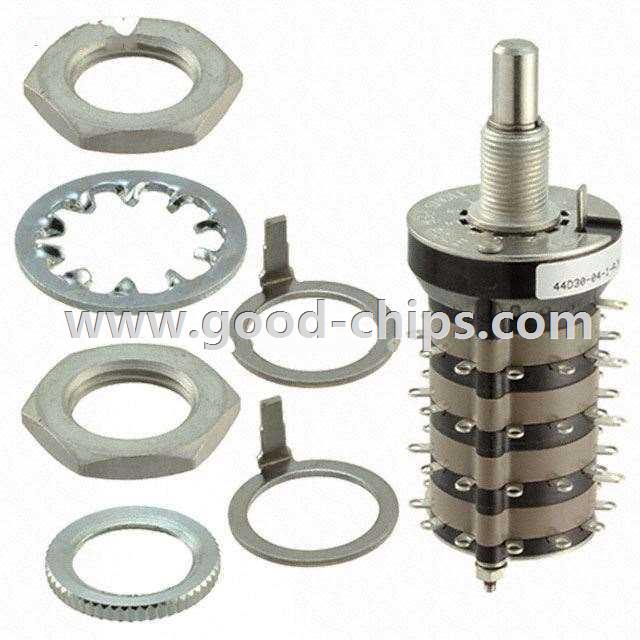

| Manufacturer Part Number: | 44D30-04-1-AJN |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | Rotary Switches |
| Available Quantity: | 9019 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rotary Switch 2 ~ 12 Position SP12T 1A (AC/DC) 115VAC Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 44D30-04-1-AJN Datasheet |
| Internal Part Number | 898-44D30-04-1-AJN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | Compliance Status by Product Type | |
| PCN Other | Multiple Devices Plating Material 30/Jan/2015 | |
| Online Catalog | 42 and 44 Series | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | Grayhill Inc. | |
| Series | 44 | |
| Part Status | Active | |
| Number of Positions | 2 ~ 12 | |
| Index Stops | Adjustable | |
| Number of Decks | 4 | |
| Number of Poles per Deck | 1 | |
| Circuit per Deck | SP12T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 1A (AC/DC) | |
| Voltage Rating - AC | 115V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Flatted (6.35mm Dia) | |
| Actuator Length | 11.10mm | |
| Angle of Throw | 30° | |
| Contact Material | Silver Alloy | |
| Contact Finish | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | - | |
| Depth Behind Panel | 52.40mm | |
| Panel Cutout Dimensions | - | |
| Operating Force, Torque | 8 ~ 115 in-oz | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 44D30-04-1-AJN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
44D30-04-1-AJN is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 44D30-04-1-AJN is new and unused, you can buy 44D30-04-1-AJN Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 44D30-04-1-AJN.
