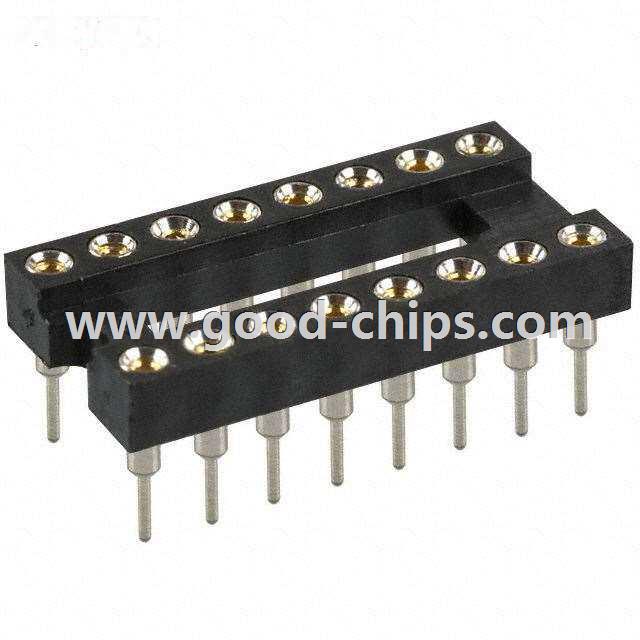

| Manufacturer Part Number: | AR-16-HZL/01-TT |
|---|---|
| Manufacturer: | Assmann WSW Components |
| Product Category: | Sockets for ICs, Transistors |
| Available Quantity: | 9337 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN IC DIP SOCKET 16POS GOLD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AR-16-HZL/01-TT Datasheet |
| Internal Part Number | 898-AR-16-HZL/01-TT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | ARxx-HZL | |
| Category | Connectors, Interconnects | |
| Family | Sockets for ICs, Transistors | |
| Manufacturer | Assmann WSW Components | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | DIP, 0.3" (7.62mm) Row Spacing | |
| Number of Positions or Pins (Grid) | 16 (2 x 8) | |
| Pitch - Mating | 0.100" (2.54mm) | |
| Contact Finish - Mating | Gold | |
| Contact Finish Thickness - Mating | 10µin (0.25µm) | |
| Contact Material - Mating | Beryllium Copper | |
| Mounting Type | Through Hole | |
| Features | Open Frame | |
| Termination | Solder | |
| Pitch - Post | 0.100" (2.54mm) | |
| Contact Finish - Post | Tin | |
| Contact Finish Thickness - Post | 200µin (5.08µm) | |
| Contact Material - Post | Beryllium Copper | |
| Housing Material | Thermoplastic, Polyester | |
| Operating Temperature | -40°C ~ 105°C | |
| Termination Post Length | - | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 3A | |
| Contact Resistance | 4 mOhm | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AR-16-HZL/01-TT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AR-16-HZL/01-TT is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of AR-16-HZL/01-TT is new and unused, you can buy AR-16-HZL/01-TT Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AR-16-HZL/01-TT.
