Manufacturer Part Number: | 17151252201 |
---|---|
Manufacturer: | Harting |
Product Category: | Backplane Connectors - Hard Metric, Standard |
Available Quantity: | 9040 Pieces |
Unit Price: | Quote by Email |

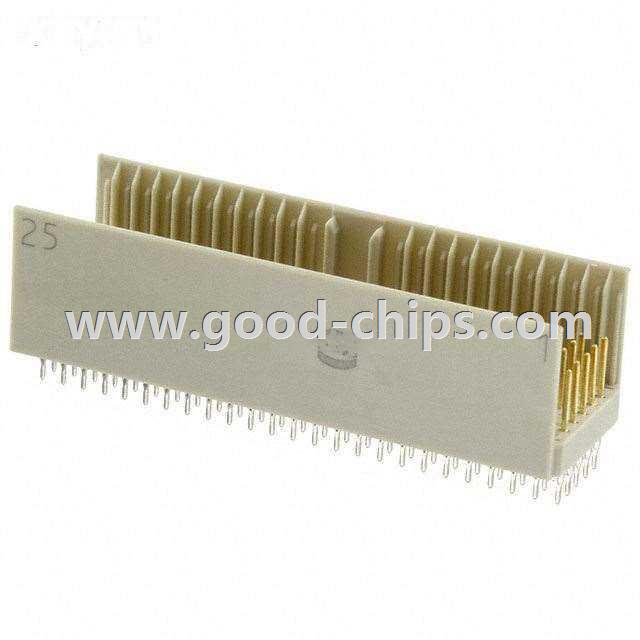

Description: | 125 Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 17151252201 Datasheet |
Internal Part Number | 898-17151252201 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 1715125x201.wrl 1715125x201.igs 1715125x201.stp | |
Online Catalog | har-bus® HM Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Hard Metric, Standard | |
Manufacturer | Harting | |
Series | har-bus® HM | |
Packaging | Tube | |
Part Status | Active | |
Connector Type | Header, Male Pins | |
Connector Style | AB 25 | |
Number of Positions | 125 | |
Number of Positions Loaded | All | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 5 | |
Mounting Type | Through Hole | |
Termination | Press-Fit | |
Connector Usage | Backplane-to-Daughtercard | |
Contact Finish | Gold or Gold-Palladium | |
Contact Finish Thickness | - | |
Current Rating | 1A | |
Voltage Rating | - | |
Operating Temperature | -55°C ~ 125°C | |
Features | - | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 17151252201 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
17151252201 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 17151252201 is new and unused, you can buy 17151252201 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 17151252201.
