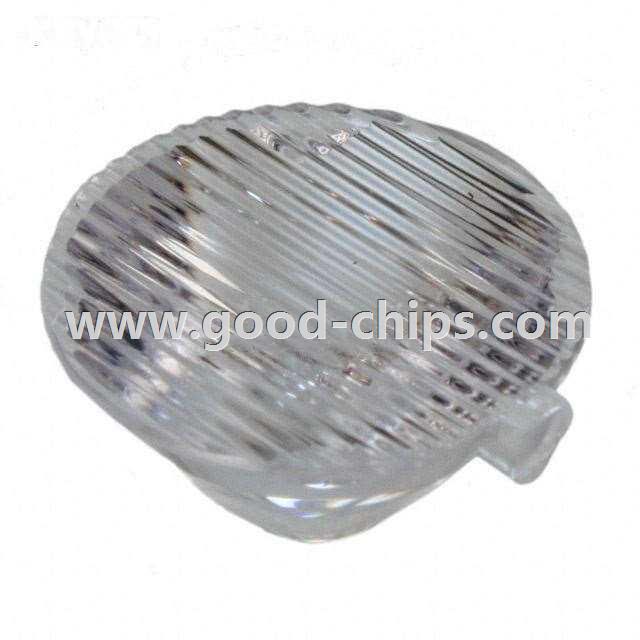

| Manufacturer Part Number: | 10198 |
|---|---|
| Manufacturer: | Carclo Technical Plastics |
| Product Category: | Optics - Lenses |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Lens Only - Holder Required (TIR) Clear Elliptical - Orthogonal Lumileds™ LUXEON Rebel, Cree XP-E, MC-E Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10198 Datasheet |
| Internal Part Number | 898-10198 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Optoelectronics | |
| Family | Optics - Lenses | |
| Manufacturer | Carclo Technical Plastics | |
| Series | - | |
| Part Status | Active | |
| Type | Lens Only - Holder Required (TIR) | |
| Color | Clear | |
| Number of LEDs | 1 | |
| For Use With/Related Products | Lumileds™ LUXEON Rebel, Cree XP-E, MC-E | |
| Lens Style/Size | Round with Ripple Top, 20mm | |
| Optical Pattern | Elliptical - Orthogonal | |
| Viewing Angle | - | |
| Mounting Type | Snap-In | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10198 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10198 is in stock for immediate shipping now. We are the distributor of Carclo Technical Plastics all series components. The condition of 10198 is new and unused, you can buy 10198 Carclo Technical Plastics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10198.
