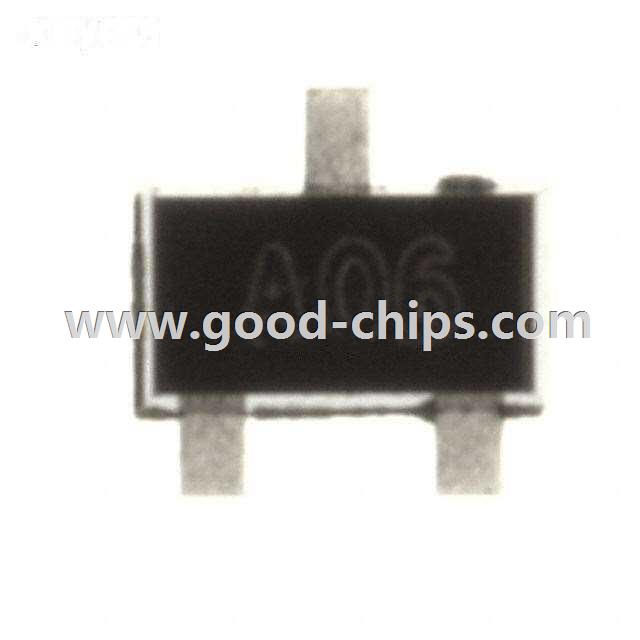

| Manufacturer Part Number: | MMBT3906T |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS PNP 40V 0.2A SOT-523F |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MMBT3906T Datasheet |
| Internal Part Number | 898-MMBT3906T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Mold Compound 20/Aug/2008 | |
| Online Catalog | PNP Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | PNP | |
| Current - Collector (Ic) (Max) | 200mA | |
| Voltage - Collector Emitter Breakdown (Max) | 40V | |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA | |
| Current - Collector Cutoff (Max) | - | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V | |
| Power - Max | 250mW | |
| Frequency - Transition | 250MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-89, SOT-490 | |
| Supplier Device Package | SOT-523F | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MMBT3906T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MMBT3906T is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of MMBT3906T is new and unused, you can buy MMBT3906T Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MMBT3906T.
