0003122021

0003122021
Manufacturer Part Number:0003122021
Manufacturer:
Product Category:Rectangular Connectors - Housings
Available Quantity:26510 Pieces
Unit Price:Quote by Email

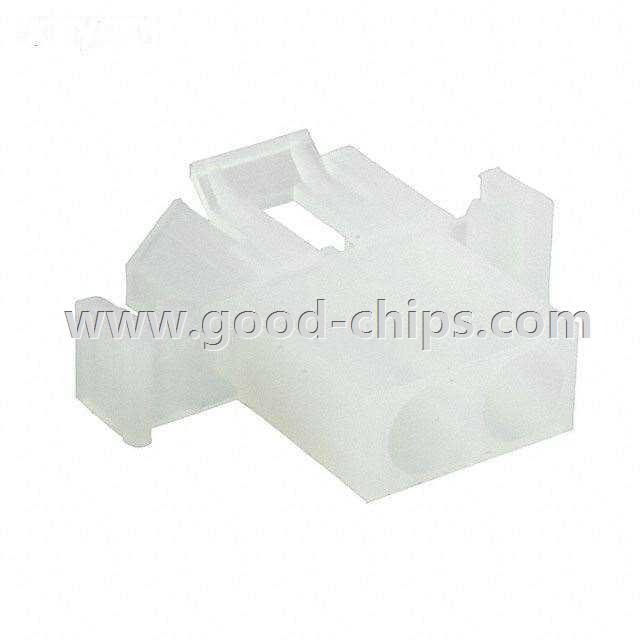

Description:2 Position Rectangular Housing Connector Plug Natural 0.280" (7.11mm)
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0003122021 Datasheet
0003122021´s Parameters
Internal Part Number898-0003122021
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS Information0003122021 Cert of Compliance
3D Model03-12-2021.stp
PCN Design/SpecificationV2 6/6 Nylon Resin Additional Supplier 05/Nov/2014
Online Catalog HCS-125, 4306 Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Housings
ManufacturerMolex, LLC
SeriesHCS-125, 4306
PackagingBulk
Part StatusActive
Connector TypePlug
Contact TypeNon-Gender Specific
Number of Positions2
Pitch0.280" (7.11mm)
Number of Rows1
Row Spacing-
Mounting TypePanel Mount
Contact TerminationCrimp
Fastening TypeLocking Ramp
ColorNatural
Features-
NoteContacts Not Provided
Standard Package 2,500
Weight0.001 KG
ApplicationEmail for details
Replacement Part0003122021
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0003122021 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0003122021 is new and unused, you can buy 0003122021 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0003122021.
