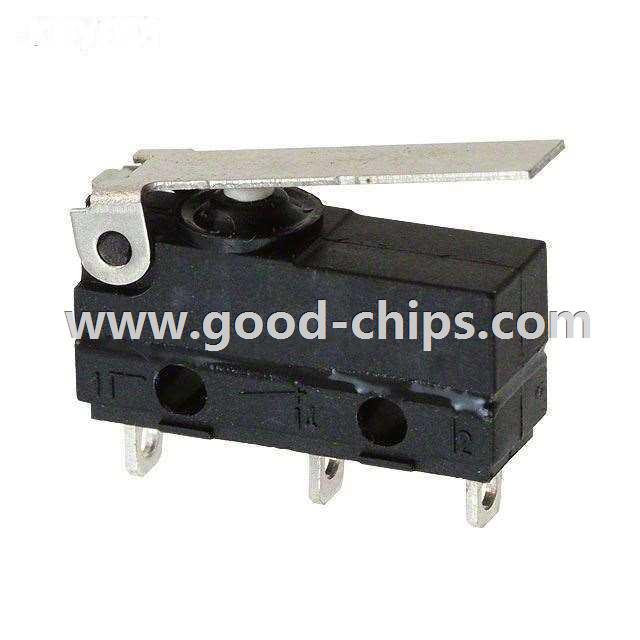

| Manufacturer Part Number: | ZW10F15CD1 |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 10303 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZW10F15CD1 Datasheet |
| Internal Part Number | 898-ZW10F15CD1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Electromechanical Switch Technology | |
| Featured Product | MICRO SWITCH™ Z Series | |
| Online Catalog | MICRO SWITCH™ ZV, ZW, and ZX Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | ZW | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 100mA (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Lever, Straight | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder Lug | |
| Ingress Protection | IP00 | |
| Features | - | |
| Operating Force, Torque | 66gf | |
| Release Force | 13gf | |
| Pretravel | 0.188" (4.8mm) | |
| Differential Travel | 0.028" (0.7mm) | |
| Overtravel | 0.039" (1.0mm) | |
| Operating Position | 0.345" (8.8mm) | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 10,000 Cycles | |
| Operating Temperature | -40°C ~ 120°C | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZW10F15CD1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZW10F15CD1 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of ZW10F15CD1 is new and unused, you can buy ZW10F15CD1 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZW10F15CD1.
