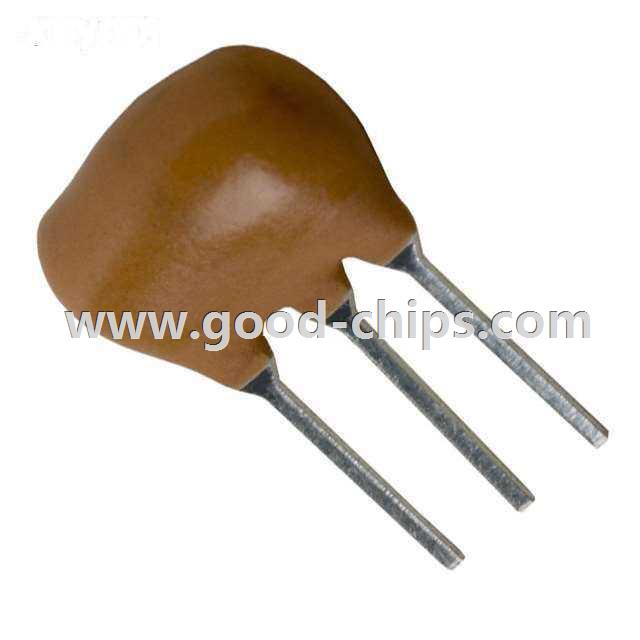

| Manufacturer Part Number: | ZTT-3.58MG |
|---|---|
| Manufacturer: | ECS Inc. |
| Product Category: | Resonators |
| Available Quantity: | 10397 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.58MHz Ceramic Resonator Built in Capacitor 30pF ±0.3% 30 Ohm -20°C ~ 80°C Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZTT-3.58MG Datasheet |
| Internal Part Number | 898-ZTT-3.58MG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | ZTA, ZTT Model Color 18/Jun/2012 | |
| Online Catalog | ZTT Series | |
| Category | Crystals and Oscillators | |
| Family | Resonators | |
| Manufacturer | ECS Inc. | |
| Series | ZTT | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Ceramic | |
| Frequency | 3.58MHz | |
| Frequency Stability | ±0.3% | |
| Frequency Tolerance | ±0.5% | |
| Features | Built in Capacitor | |
| Capacitance | 30pF | |
| Impedance | 30 Ohm | |
| Operating Temperature | -20°C ~ 80°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch | |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) | |
| Height | 0.295" (7.50mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZTT-3.58MG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZTT-3.58MG is in stock for immediate shipping now. We are the distributor of ECS Inc. all series components. The condition of ZTT-3.58MG is new and unused, you can buy ZTT-3.58MG ECS Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZTT-3.58MG.
