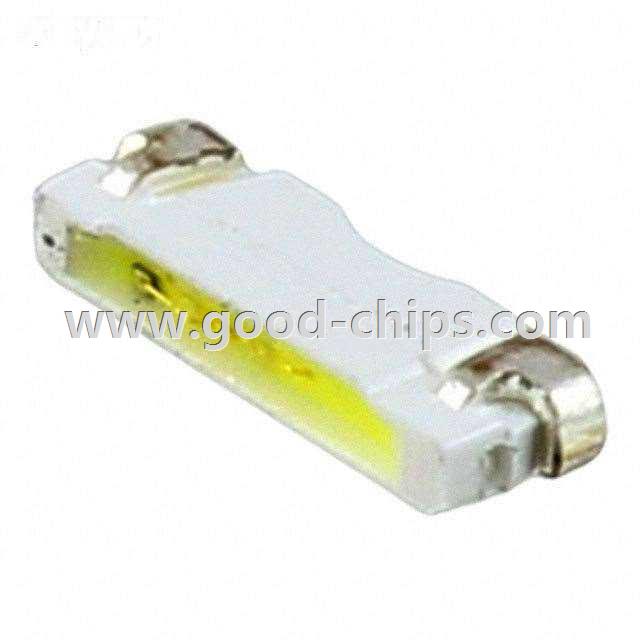

| Manufacturer Part Number: | ZSM-S3806-W |
|---|---|
| Manufacturer: | JKL Components Corp. |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | White LED Indication - Discrete 3.2V 2-SMD, Boomerang |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZSM-S3806-W Datasheet |
| Internal Part Number | 898-ZSM-S3806-W | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | JKL Components Corp. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Color | White | |
| Lens Color | Yellow | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 1750mcd | |
| Lens Style/Size | Rectangle with Flat Top | |
| Voltage - Forward (Vf) (Typ) | 3.2V | |
| Current - Test | 20mA | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount, Right Angle | |
| Wavelength - Dominant | - | |
| Wavelength - Peak | - | |
| Features | - | |
| Package / Case | 2-SMD, Boomerang | |
| Supplier Device Package | Side View LED | |
| Size / Dimension | 3.80mm L x 1.20mm W | |
| Height (Max) | 0.60mm | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZSM-S3806-W | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZSM-S3806-W is in stock for immediate shipping now. We are the distributor of JKL Components Corp. all series components. The condition of ZSM-S3806-W is new and unused, you can buy ZSM-S3806-W JKL Components Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZSM-S3806-W.
