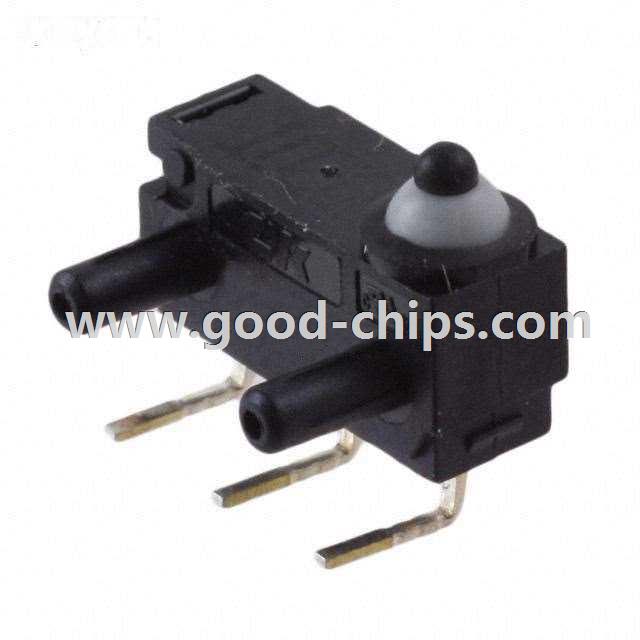

| Manufacturer Part Number: | ZMSH03130P00LLC |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 3A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZMSH03130P00LLC Datasheet |
| Internal Part Number | 898-ZMSH03130P00LLC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Sealed Switch – Part 1 Sealed Switch – Part 2 Sealed Switch – Part 3 Sealed Switch – Part 4 Introduction to Electromechanical Switches | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | ZMS | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 3A (AC/DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | |
| Features | Support Posts | |
| Operating Force, Torque | 130gf | |
| Release Force | 13gf | |
| Pretravel | 0.030" (0.8mm) | |
| Differential Travel | 0.012" (0.3mm) | |
| Overtravel | 0.065" (1.7mm) | |
| Operating Position | 0.415" (10.55mm) | |
| Mechanical Life | 500,000 Cycles | |
| Electrical Life | 100,000 Cycles | |
| Operating Temperature | -40°C ~ 120°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZMSH03130P00LLC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZMSH03130P00LLC is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of ZMSH03130P00LLC is new and unused, you can buy ZMSH03130P00LLC C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZMSH03130P00LLC.
