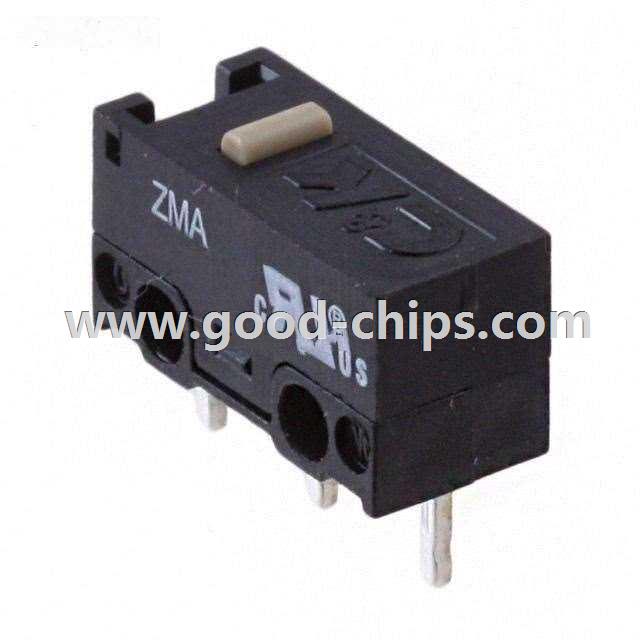

| Manufacturer Part Number: | ZMA00A150P00PC |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9186 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZMA00A150P00PC Datasheet |
| Internal Part Number | 898-ZMA00A150P00PC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches Industrial Switches for Safety and Security | |
| 3D Model | ZMA0xA150P00PC.stp ZMA0xA150P00PC.pdf | |
| Online Catalog | ZM, ZMA, ZMS, and ZMSM Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | ZMA | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 100mA (AC/DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 48V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 150gf | |
| Release Force | 35gf | |
| Pretravel | 0.024" (0.6mm) | |
| Differential Travel | - | |
| Overtravel | 0.008" (0.2mm) | |
| Operating Position | 0.272" (6.9mm) | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 300,000 Cycles | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZMA00A150P00PC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZMA00A150P00PC is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of ZMA00A150P00PC is new and unused, you can buy ZMA00A150P00PC C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZMA00A150P00PC.
