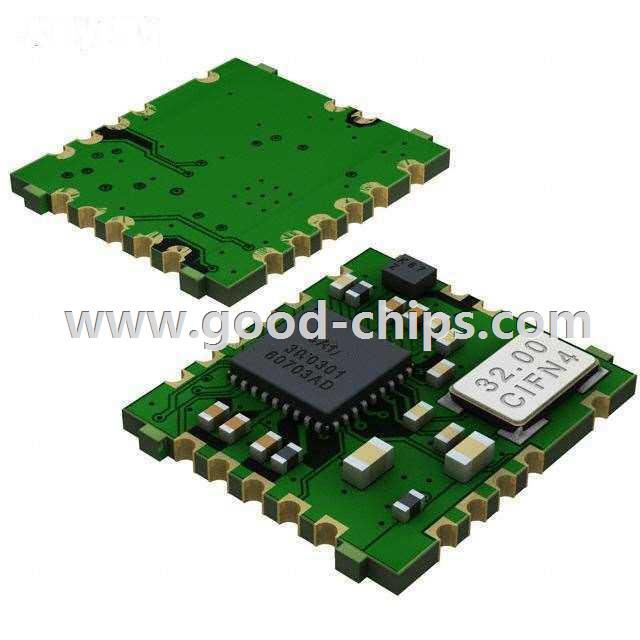

Manufacturer Part Number: | ZM3102AU-CME1 |
---|---|
Manufacturer: | Sigma Designs Inc. |
Product Category: | RF Transceiver Modules |
Available Quantity: | 55335 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE ISM<1GHZ |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ZM3102AU-CME1 Datasheet |
Internal Part Number | 898-ZM3102AU-CME1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Access to Sigma Designs SDK for Z-Wave | |
Design Resources | Development Tool Selector IoT Product Selector | |
Featured Product | Z-Wave® ZM3102 Module | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Sigma Designs Inc. | |
Series | Z-Wave® | |
Packaging | Tray | |
Part Status | Active | |
RF Family/Standard | General ISM < 1GHz | |
Protocol | Z-Wave® | |
Modulation | FSK | |
Frequency | 908MHz | |
Data Rate | 40kbps | |
Power - Output | -2dBm | |
Sensitivity | -102dBm | |
Serial Interfaces | SPI, UART | |
Antenna Type | Not Included | |
Memory Size | 32kB Flash, 2kB SRAM | |
Voltage - Supply | 2.1 V ~ 3.6 V | |
Current - Receiving | 23mA | |
Current - Transmitting | 24mA ~ 36mA | |
Mounting Type | Surface Mount | |
Operating Temperature | -15°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ZM3102AU-CME1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ZM3102AU-CME1 is in stock for immediate shipping now. We are the distributor of Sigma Designs Inc. all series components. The condition of ZM3102AU-CME1 is new and unused, you can buy ZM3102AU-CME1 Sigma Designs Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZM3102AU-CME1.
