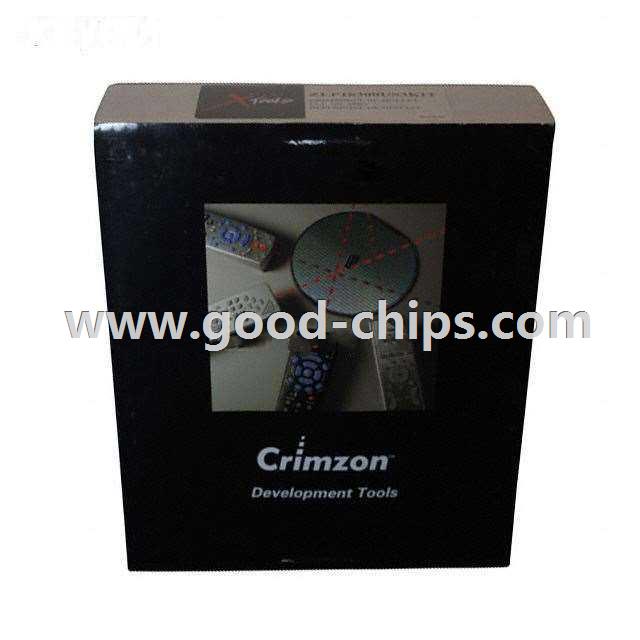

Manufacturer Part Number: | ZLP16300US3KIT |
---|---|
Manufacturer: | Zilog |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | ZLP16300 Crimzon™ Series Reference Design, Remote Control, IR: MCU Based Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ZLP16300US3KIT Datasheet |
Internal Part Number | 898-ZLP16300US3KIT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Zilog | |
Series | Crimzon™ | |
Part Status | Obsolete | |
Main Purpose | Reference Design, Remote Control, IR: MCU Based | |
Embedded | Yes, MCU, 8-Bit | |
Utilized IC / Part | ZLP16300 | |
Primary Attributes | Non-Learning Remote 3-Function: Cable/Satellite, DVD/VCR, and TV | |
Secondary Attributes | North American Version, 64 Keys (8x8 Matrix) | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ZLP16300US3KIT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ZLP16300US3KIT is in stock for immediate shipping now. We are the distributor of Zilog all series components. The condition of ZLP16300US3KIT is new and unused, you can buy ZLP16300US3KIT Zilog with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZLP16300US3KIT.
