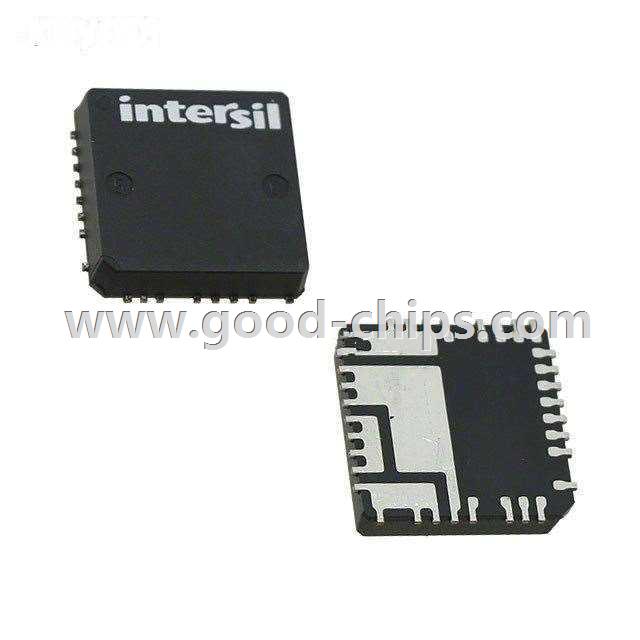

| Manufacturer Part Number: | ZL9117MIRZ |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | DC DC Converters |
| Available Quantity: | 9081 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 0.6-3.6V 61W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZL9117MIRZ Datasheet |
| Internal Part Number | 898-ZL9117MIRZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | PowerNavigator 5.2 Overview | |
| PCN Design/Specification | ZL9101M, ZL9117M Firmware Update 13/Sept/2012 Mold Compound Update 26/Nov/2014 | |
| Online Catalog | ZL9117M Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Intersil | |
| Series | ZL9117M | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module, Digital | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 13.2V | |
| Voltage - Output 1 | 0.6 ~ 3.6 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 17A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | OCP, OTP, OVP, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 21-QFN, Variant | |
| Size / Dimension | 0.59" L x 0.59" W x 0.14" H (15.0mm x 15.0mm x 3.5mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | - | |
| Power (Watts) - Max | - | |
| Standard Package | 96 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZL9117MIRZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZL9117MIRZ is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ZL9117MIRZ is new and unused, you can buy ZL9117MIRZ Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZL9117MIRZ.
