| Manufacturer Part Number: | ZL2102DEMO1Z |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |

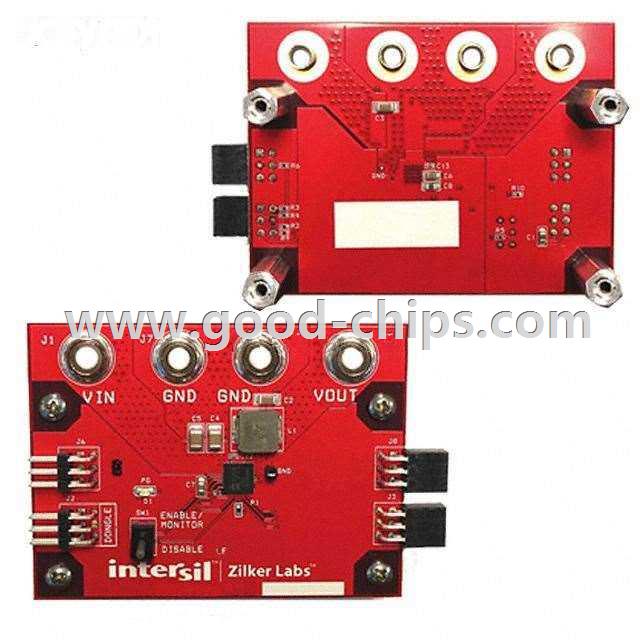

| Description: | ZL2102 Zilker Labs™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZL2102DEMO1Z Datasheet |
| Internal Part Number | 898-ZL2102DEMO1Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | Intersil - ZL2102 DC/DC Regulators | |
| Reference Design Library | ZL2102DEMO1Z: 3.3V @ 6A, 12V in | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Intersil | |
| Series | Zilker Labs™ | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V | |
| Current - Output | 6A | |
| Voltage - Input | 7.5 V ~ 14 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 600kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board, Cable | |
| Utilized IC / Part | ZL2102 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZL2102DEMO1Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZL2102DEMO1Z is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ZL2102DEMO1Z is new and unused, you can buy ZL2102DEMO1Z Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZL2102DEMO1Z.
