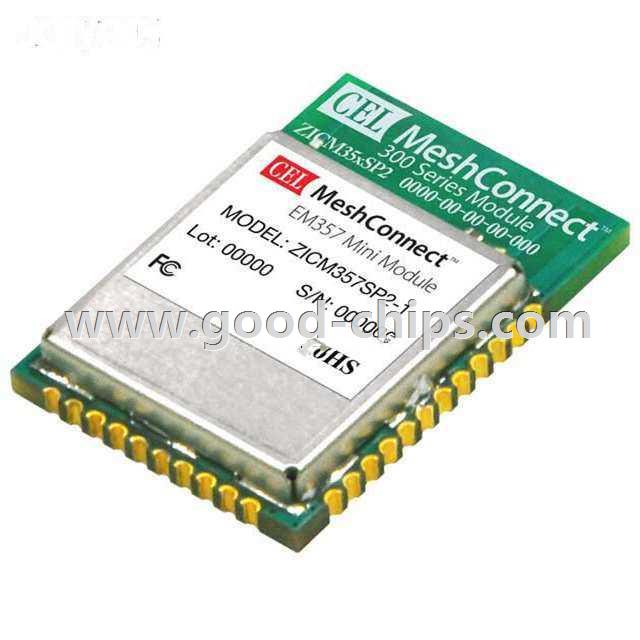

Manufacturer Part Number: | ZICM357SP2-1C |
---|---|
Manufacturer: | CEL |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9380 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE 802.15.4 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ZICM357SP2-1C Datasheet |
Internal Part Number | 898-ZICM357SP2-1C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
PCN Design/Specification | Alternate Crystal Resonator 23/Jan/2014 ZICM357,3588 Modules Firmware Update 16/Apr/2014 | |
Online Catalog | EM35x Mini Modules | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | CEL | |
Series | MeshConnect™ | |
Packaging | Tray | |
Part Status | Active | |
RF Family/Standard | 802.15.4 | |
Protocol | Zigbee® | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | 250kbps | |
Power - Output | 20dBm | |
Sensitivity | -103dBm | |
Serial Interfaces | JTAG, SPI, UART | |
Antenna Type | Not Included, Castellation | |
Memory Size | 192kB Flash, 12kB SRAM | |
Voltage - Supply | 2.1 V ~ 3.6 V | |
Current - Receiving | 34mA | |
Current - Transmitting | 58mA ~ 150mA | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 330 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ZICM357SP2-1C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ZICM357SP2-1C is in stock for immediate shipping now. We are the distributor of CEL all series components. The condition of ZICM357SP2-1C is new and unused, you can buy ZICM357SP2-1C CEL with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZICM357SP2-1C.
