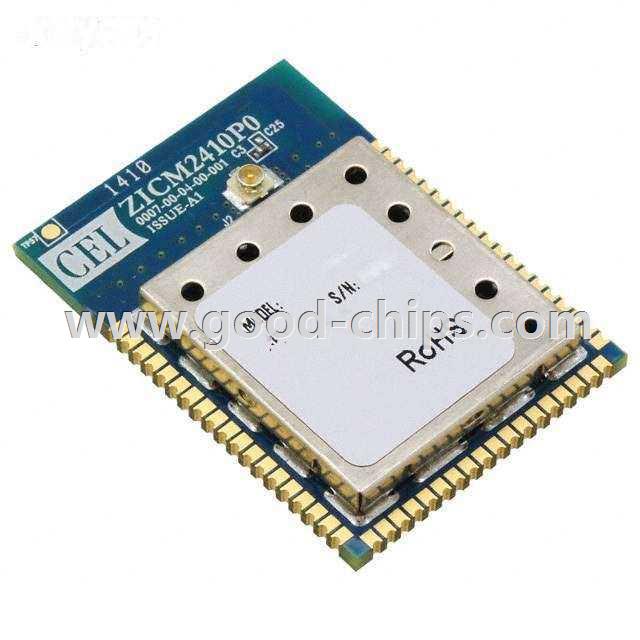

Manufacturer Part Number: | ZICM2410P0-1C-B |
---|---|
Manufacturer: | CEL |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE 802.15.4 U.FL ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ZICM2410P0-1C-B Datasheet |
Internal Part Number | 898-ZICM2410P0-1C-B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
PCN Obsolescence/ EOL | Multiple Devices 08/Oct/2012 | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | CEL | |
Series | MeshConnect™ | |
Packaging | Tray | |
Part Status | Obsolete | |
RF Family/Standard | 802.15.4 | |
Protocol | Zigbee® | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | 1Mbps | |
Power - Output | 6dBm | |
Sensitivity | -97dBm | |
Serial Interfaces | I²S, SPI, UART | |
Antenna Type | Not Included, U.FL | |
Memory Size | 96kB Flash, 8kB SRAM | |
Voltage - Supply | 2.1 V ~ 3.3 V | |
Current - Receiving | 35mA | |
Current - Transmitting | 31mA ~ 44mA | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 28 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ZICM2410P0-1C-B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ZICM2410P0-1C-B is in stock for immediate shipping now. We are the distributor of CEL all series components. The condition of ZICM2410P0-1C-B is new and unused, you can buy ZICM2410P0-1C-B CEL with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZICM2410P0-1C-B.
