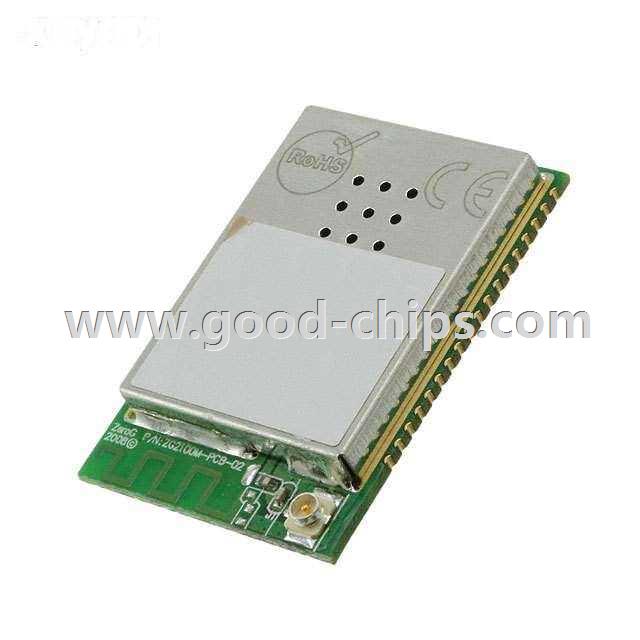

Manufacturer Part Number: | ZG2101MC |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE WIFI U.FL ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ZG2101MC Datasheet |
Internal Part Number | 898-ZG2101MC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Microchip Technology | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
RF Family/Standard | WiFi | |
Protocol | 802.11b/g/n | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | 2Mbps | |
Power - Output | 10dBm | |
Sensitivity | -91dBm | |
Serial Interfaces | SPI, UART | |
Antenna Type | Not Included, U.FL | |
Memory Size | - | |
Voltage - Supply | 2.7 V ~ 3.6 V | |
Current - Receiving | 85mA | |
Current - Transmitting | 154mA | |
Mounting Type | Surface Mount | |
Operating Temperature | 0°C ~ 70°C | |
Package / Case | 36-DFN Module | |
Standard Package | 45 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ZG2101MC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ZG2101MC is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ZG2101MC is new and unused, you can buy ZG2101MC Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZG2101MC.
