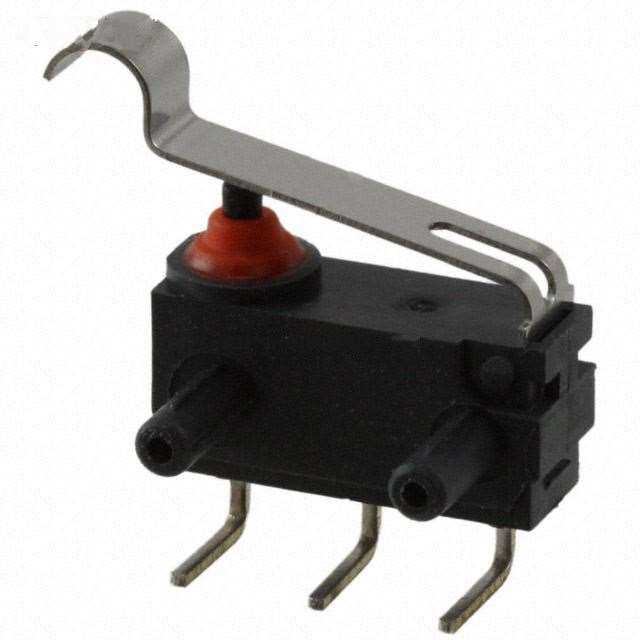

| Manufacturer Part Number: | ZD30S60H02-Z |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9839 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZD30S60H02-Z Datasheet |
| Internal Part Number | 898-ZD30S60H02-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | ZD | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 100mA (AC), 3A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Lever, Simulated Roller | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Ingress Protection | IP00 | |
| Features | Support Posts | |
| Operating Force, Torque | 180gf | |
| Release Force | 20gf | |
| Pretravel | 0.150" (3.8mm) | |
| Differential Travel | 0.027" (0.7mm) | |
| Overtravel | 0.060" (1.5mm) | |
| Operating Position | 0.420" (10.7mm) | |
| Mechanical Life | 500,000 Cycles | |
| Electrical Life | 6,000 Cycles | |
| Operating Temperature | -40°C ~ 120°C | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZD30S60H02-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZD30S60H02-Z is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of ZD30S60H02-Z is new and unused, you can buy ZD30S60H02-Z Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZD30S60H02-Z.
