| Manufacturer Part Number: | Z8F0830QH020EG |
|---|---|
| Manufacturer: | Zilog |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | eZ8 Encore!® Microcontroller IC 8-Bit 20MHz 8KB (8K x 8) FLASH |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | Z8F0830QH020EG Datasheet |
| Internal Part Number | 898-Z8F0830QH020EG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Zilog | |
| Series | Encore!® | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | eZ8 | |
| Core Size | 8-Bit | |
| Speed | 20MHz | |
| Connectivity | - | |
| Peripherals | Brown-out Detect/Reset, LED, POR, PWM, WDT | |
| Number of I/O | 17 | |
| Program Memory Size | 8KB (8K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 256 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 3.6 V | |
| Data Converters | A/D 7x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 105°C (TA) | |

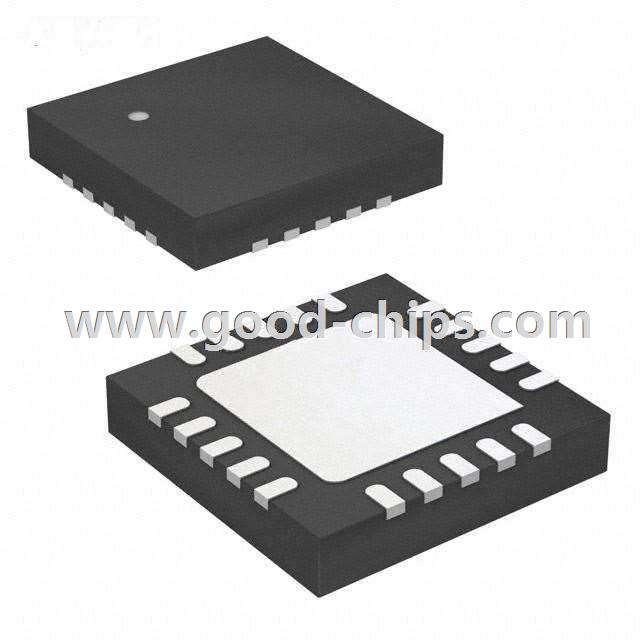

| Package / Case | 20-VQFN Exposed Pad | |
| Supplier Device Package | * | |
| Standard Package | 490 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | Z8F0830QH020EG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
Z8F0830QH020EG is in stock for immediate shipping now. We are the distributor of Zilog all series components. The condition of Z8F0830QH020EG is new and unused, you can buy Z8F0830QH020EG Zilog with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for Z8F0830QH020EG.
