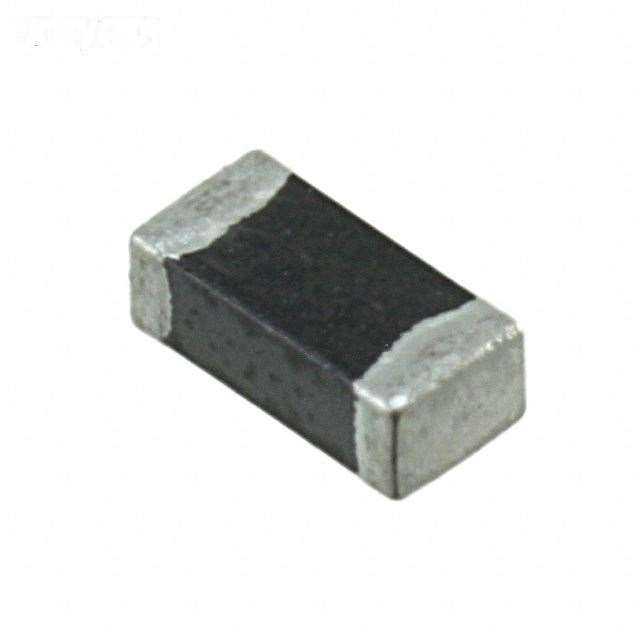

Manufacturer Part Number: | Z1206C800APWST |
---|---|
Manufacturer: | Kemet |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |
Description: | 80 Ohm Impedance Ferrite Bead 1206 (3216 Metric) Surface Mount Power Line 4A 1 Lines 10 mOhm Max DCR -40°C ~ 125°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | Z1206C800APWST Datasheet |
Internal Part Number | 898-Z1206C800APWST | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Z-PWS Series | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | Kemet | |
Series | Z-PWS | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | Power Line | |
Number of Lines | 1 | |
Impedance @ Frequency | 80 Ohm @ 100MHz | |
Current Rating (Max) | 4A | |
DC Resistance (DCR) (Max) | 10 mOhm | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Package / Case | 1206 (3216 Metric) | |
Mounting Type | Surface Mount | |
Height (Max) | 0.071" (1.80mm) | |
Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | Z1206C800APWST | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
Z1206C800APWST is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of Z1206C800APWST is new and unused, you can buy Z1206C800APWST Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for Z1206C800APWST.
