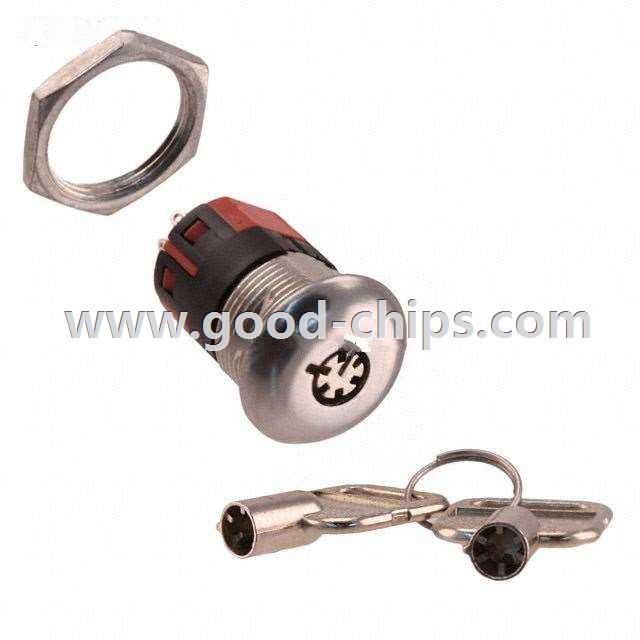

Manufacturer Part Number: | Y201132V203NQ |
---|---|
Manufacturer: | C&K Components |
Product Category: | Keylock Switches |
Available Quantity: | 9084 Pieces |
Unit Price: | Quote by Email |
Description: | Keylock Switch 2 Position DPDT 4A (AC/DC) 125V (AC) 28V (DC) Panel Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | Y201132V203NQ Datasheet |
Internal Part Number | 898-Y201132V203NQ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Introduction to Electromechanical Switches Industrial Switches for Safety and Security | |
Online Catalog | Y Series | |
Category | Switches | |
Family | Keylock Switches | |
Manufacturer | C&K Components | |
Series | Y | |
Part Status | Active | |
Circuit | DPDT | |
Number of Positions | 2 | |
Switch Function | On-On | |
Contact Timing | Not Specified | |
Current Rating | 4A (AC/DC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | 28V | |
Actuator Type | Tubular Key | |
Key Removable Positions | 1 only | |
Angle of Throw | 90° | |
Contact Material | Copper | |
Contact Finish | Silver | |
Mounting Type | Panel Mount | |
Termination Style | Solder Lug | |
Panel Cutout Dimensions | Circular - 19.30mm Dia | |
Features | - | |
Depth Behind Flange | 29.34mm | |
Operating Temperature | - | |
Mechanical Life | - | |
Electrical Life | 10,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | Y201132V203NQ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
Y201132V203NQ is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of Y201132V203NQ is new and unused, you can buy Y201132V203NQ C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for Y201132V203NQ.
