| Manufacturer Part Number: | Y09300R02200J0L |
|---|---|
| Manufacturer: | Vishay Foil Resistors (Division of Vishay Precision Group) |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 0.022 OHM 5% 1W |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | Y09300R02200J0L Datasheet |
| Internal Part Number | 898-Y09300R02200J0L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Vishay Foil Resistors (Division of Vishay Precision Group) | |

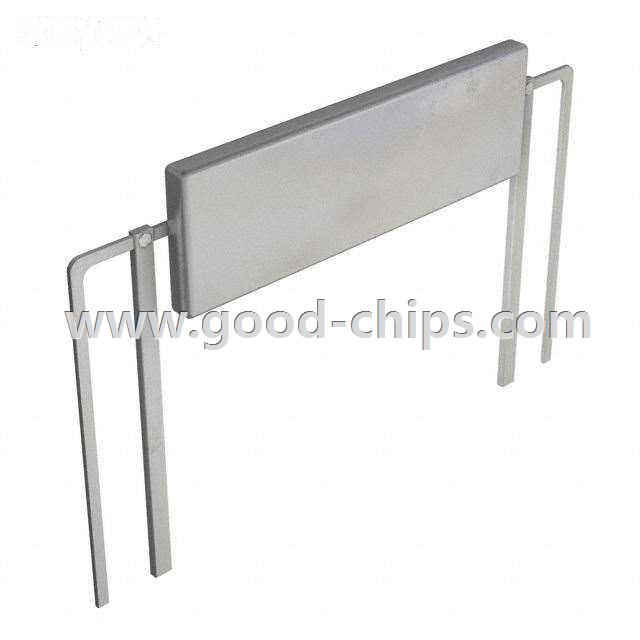

| Series | VCS101 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Resistance (Ohms) | 0.022 | |
| Tolerance | ±5% | |
| Power (Watts) | 1W | |
| Composition | Metal Foil | |
| Features | Current Sense, Moisture Resistant, Non-Inductive | |
| Temperature Coefficient | ±30ppm/°C | |
| Operating Temperature | -55°C ~ 175°C | |
| Package / Case | 4-SMD, Flat Leads | |
| Supplier Device Package | - | |
| Size / Dimension | 0.520" L x 0.080" W (13.21mm x 2.03mm) | |
| Height | 0.130" (3.30mm) | |
| Number of Terminations | 4 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | Y09300R02200J0L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
Y09300R02200J0L is in stock for immediate shipping now. We are the distributor of Vishay Foil Resistors (Division of Vishay Precision Group) all series components. The condition of Y09300R02200J0L is new and unused, you can buy Y09300R02200J0L Vishay Foil Resistors (Division of Vishay Precision Group) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for Y09300R02200J0L.
