| Manufacturer Part Number: | XW4L-04A1-H1 |
|---|---|
| Manufacturer: | Omron Electronics Inc-EMC Div |
| Product Category: | Terminal Blocks - Wire to Board |
| Available Quantity: | 9510 Pieces |
| Unit Price: | Quote by Email |

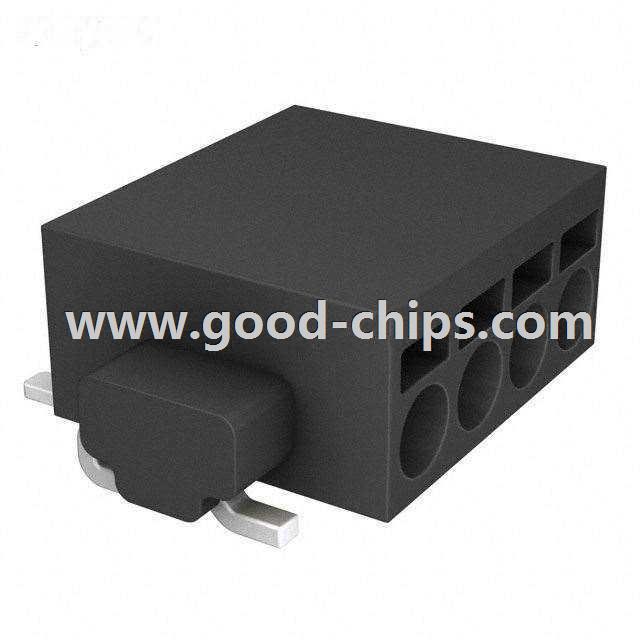

| Description: | 4 Position Wire to Board Terminal Block Horizontal with Board 0.100" (2.54mm) Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XW4L-04A1-H1 Datasheet |
| Internal Part Number | 898-XW4L-04A1-H1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | XW4 Series | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Wire to Board | |
| Manufacturer | Omron Electronics Inc-EMC Div | |
| Series | XW4 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Levels | 1 | |
| Positions Per Level | 4 | |
| Pitch | 0.100" (2.54mm) | |
| Mating Orientation | Horizontal with Board | |
| Current | 6A | |
| Voltage | 160V | |
| Wire Gauge | 20-26 AWG | |
| Mounting Type | Surface Mount | |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | |
| Features | Board Guide | |
| Color | Black | |
| Operating Temperature | -45°C ~ 125°C | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Contact Material - Plating | Copper Alloy - Tin Plated | |
| Clamp Material - Plating | - | |
| Screw Material - Plating | - | |
| Torque - Screw | - | |
| Screw Thread | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XW4L-04A1-H1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XW4L-04A1-H1 is in stock for immediate shipping now. We are the distributor of Omron Electronics Inc-EMC Div all series components. The condition of XW4L-04A1-H1 is new and unused, you can buy XW4L-04A1-H1 Omron Electronics Inc-EMC Div with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XW4L-04A1-H1.
