| Manufacturer Part Number: | XW4K-09A1-H1 |
|---|---|
| Manufacturer: | Omron Electronics Inc-EMC Div |
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

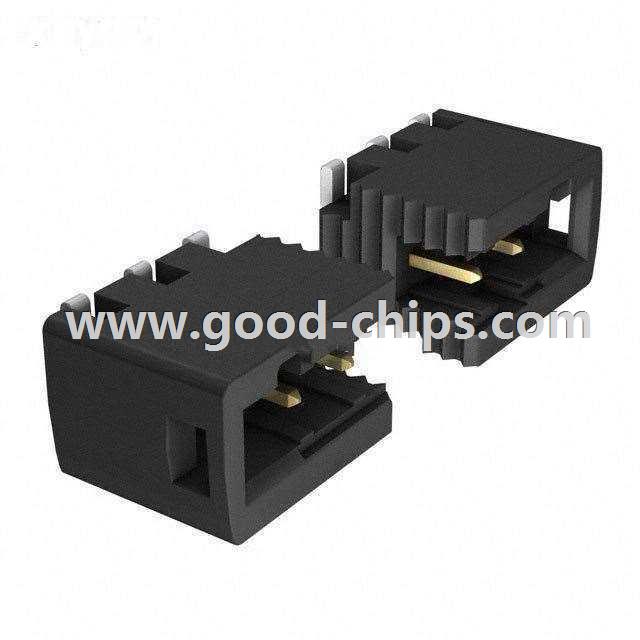

| Description: | 9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.100" (2.54mm) 90°, Right Angle Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XW4K-09A1-H1 Datasheet |
| Internal Part Number | 898-XW4K-09A1-H1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Headers, Plugs and Sockets | |
| Manufacturer | Omron Electronics Inc-EMC Div | |
| Series | XW4 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Header, Male Pins, Shrouded (4 Side) | |
| Number of Positions | 9 | |
| Positions Per Level | 9 | |
| Number of Levels | 1 | |
| Pitch | 0.100" (2.54mm) | |
| Header Orientation | 90°, Right Angle | |
| Plug Wire Entry | - | |
| Termination Style | Solder | |
| Mounting Type | Surface Mount | |
| Current - IEC | - | |
| Voltage - IEC | - | |
| Current - UL | 6A | |
| Voltage - UL | 160V | |
| Wire Gauge or Range - AWG | 20-26 AWG | |
| Wire Gauge or Range - mm² | 0.14 ~ 0.5mm² | |
| Color | Black | |
| Operating Temperature | -45°C ~ 125°C | |
| Contact Mating Finish | Tin | |
| Features | Board Guide, Latches | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XW4K-09A1-H1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XW4K-09A1-H1 is in stock for immediate shipping now. We are the distributor of Omron Electronics Inc-EMC Div all series components. The condition of XW4K-09A1-H1 is new and unused, you can buy XW4K-09A1-H1 Omron Electronics Inc-EMC Div with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XW4K-09A1-H1.
