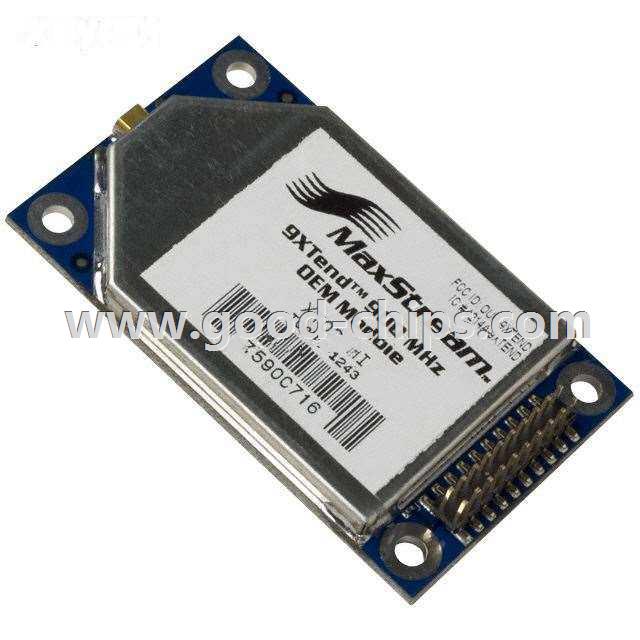

Manufacturer Part Number: | XT09-MI |
---|---|
Manufacturer: | Digi International |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE ISM<1GHZ MMCX ANT |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XT09-MI Datasheet |
Internal Part Number | 898-XT09-MI | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Maximizing Range in Wireless Communications Antenna Design and Integration Fundamentals | |
RoHS Information | RoHS Declaration of Compliance | |
Design Resources | Development Tool Selector IoT Product Selector | |
PCN Obsolescence/ EOL | XTEND Module EOL 11/Nov/2015 | |
PCN Design/Specification | Current Rating Update 11/Feb/2015 Release of XCTU 6.2 16/Jun/2015 | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Digi International | |
Series | XTend® | |
Packaging | Bulk | |
Part Status | Obsolete | |
RF Family/Standard | General ISM < 1GHz | |
Protocol | - | |
Modulation | FHSS, FSK | |
Frequency | 900MHz | |
Data Rate | 225kbps | |
Power - Output | 30dBm | |
Sensitivity | -110dBm | |
Serial Interfaces | UART | |
Antenna Type | Not Included, MMCX | |
Memory Size | - | |
Voltage - Supply | 2.8 V ~ 5.5 V | |
Current - Receiving | 80mA | |
Current - Transmitting | 90mA ~ 730mA | |
Mounting Type | Chassis Mount | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XT09-MI | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XT09-MI is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of XT09-MI is new and unused, you can buy XT09-MI Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XT09-MI.
