Manufacturer Part Number: | XRP6840BILB-F |
---|---|
Manufacturer: | Exar Corporation |
Product Category: | PMIC - LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Driver IC 2 Output DC DC Regulator Switched Capacitor (Charge Pump) I²C Dimming 2.15A (Flash) 20-TQFN (4x4) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XRP6840BILB-F Datasheet |
Internal Part Number | 898-XRP6840BILB-F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - LED Drivers | |
Manufacturer | Exar Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Type | DC DC Regulator | |
Topology | Switched Capacitor (Charge Pump) | |
Internal Switch(s) | Yes | |
Number of Outputs | 2 | |
Voltage - Supply (Min) | 2.7V | |
Voltage - Supply (Max) | 5.5V | |
Voltage - Output | - | |
Current - Output / Channel | 2.15A (Flash) | |
Frequency | 2.4MHz | |
Dimming | I²C | |
Applications | Camera Flash, Lighting | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

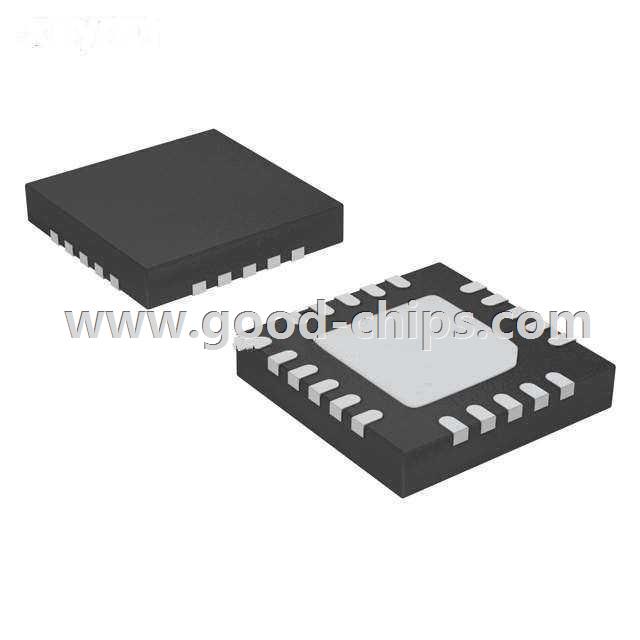

Package / Case | 20-WFQFN Exposed Pad | |
Supplier Device Package | 20-TQFN (4x4) | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XRP6840BILB-F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XRP6840BILB-F is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XRP6840BILB-F is new and unused, you can buy XRP6840BILB-F Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XRP6840BILB-F.
