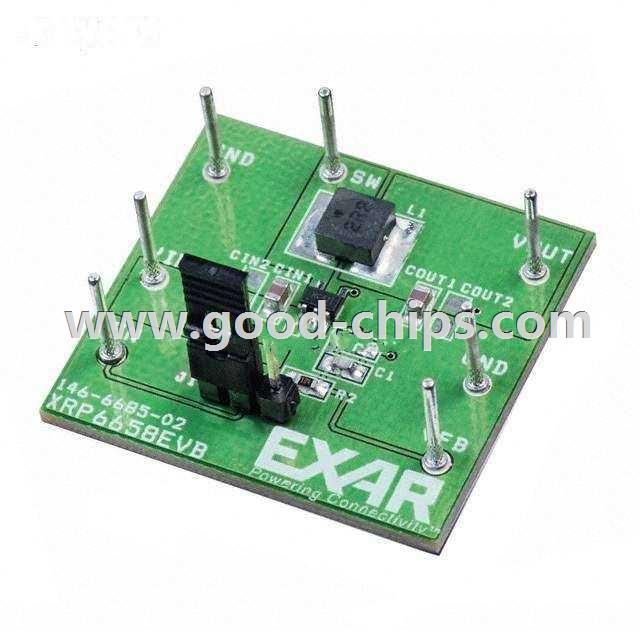

| Manufacturer Part Number: | XRP6658EVB |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | XRP6658 - DC/DC, Step Down 1, Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XRP6658EVB Datasheet |
| Internal Part Number | 898-XRP6658EVB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | XRP6658 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Exar Corporation | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V | |
| Current - Output | 1A | |
| Voltage - Input | 2.5 V ~ 5.5 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 1.5MHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | XRP6658 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XRP6658EVB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XRP6658EVB is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XRP6658EVB is new and unused, you can buy XRP6658EVB Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XRP6658EVB.
