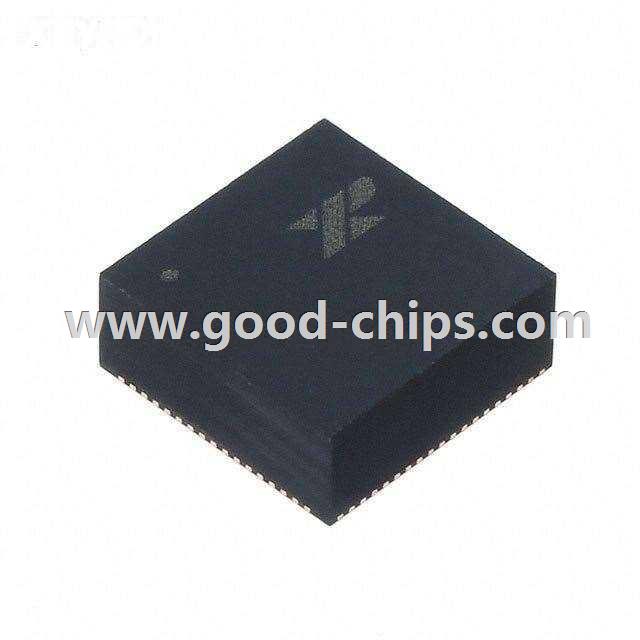

| Manufacturer Part Number: | XR79206EL-F |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | DC DC Converters |
| Available Quantity: | 9105 Pieces |
| Unit Price: | Quote by Email |
| Description: | 6A 40V POWER MODULE IN USING PAT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XR79206EL-F Datasheet |
| Internal Part Number | 898-XR79206EL-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | XR79xxx | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Exar Corporation | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3V | |
| Voltage - Input (Max) | 40V | |
| Voltage - Output 1 | 0.6 ~ 13.2 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 6A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | OCP, OTP, SCP, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 56-QFN | |
| Size / Dimension | 0.31" L x 0.31" W x 0.16" H (8.0mm x 8.0mm x 4.0mm) | |
| Operating Temperature | -40°C ~ 125°C | |
| Efficiency | 95% | |
| Power (Watts) - Max | - | |
| Standard Package | 260 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XR79206EL-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XR79206EL-F is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XR79206EL-F is new and unused, you can buy XR79206EL-F Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XR79206EL-F.
