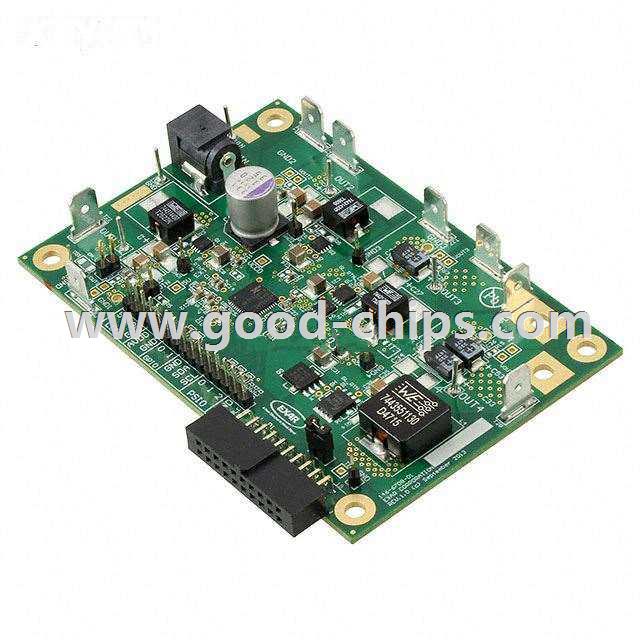

Manufacturer Part Number: | XR77128EVB-DEMO-1-KITA |
---|---|
Manufacturer: | Exar Corporation |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9013 Pieces |
Unit Price: | Quote by Email |
Description: | XR77128 - DC/DC, Step Down with LDO 4, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XR77128EVB-DEMO-1-KITA Datasheet |
Internal Part Number | 898-XR77128EVB-DEMO-1-KITA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | XR77128 Development Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Exar Corporation | |
Series | - | |
Part Status | Active | |
Main Purpose | DC/DC, Step Down with LDO | |
Outputs and Type | 4, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 1V, 1.5V, 2.5V, 3.3V | |
Current - Output | 10A, 5A, 3A, 3A | |
Voltage - Input | 5.5 V ~ 25 V | |
Regulator Topology | Buck | |
Frequency - Switching | - | |
Board Type | Fully Populated | |
Supplied Contents | 3 Boards | |
Utilized IC / Part | XR77128 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XR77128EVB-DEMO-1-KITA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XR77128EVB-DEMO-1-KITA is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XR77128EVB-DEMO-1-KITA is new and unused, you can buy XR77128EVB-DEMO-1-KITA Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XR77128EVB-DEMO-1-KITA.
