| Manufacturer Part Number: | XR76208EVB |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |

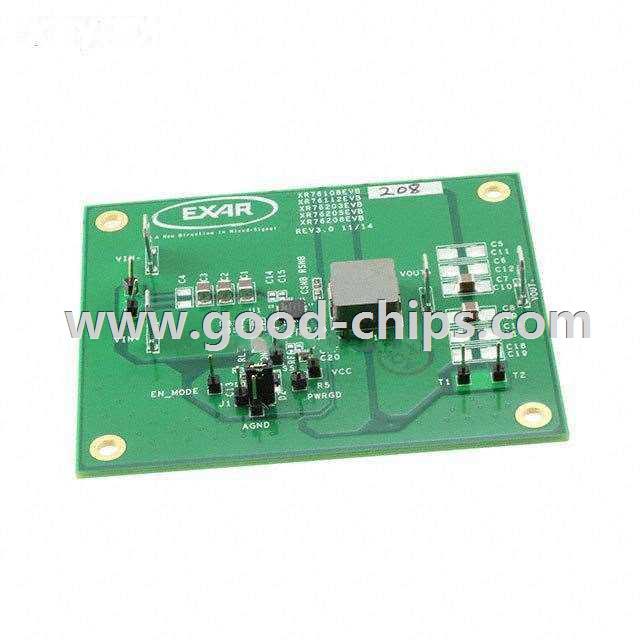

| Description: | XR76208 PowerBlox™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XR76208EVB Datasheet |
| Internal Part Number | 898-XR76208EVB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | PowerBlox Family of Voltage Regulators | |
| Design Resources | Development Tool Selector | |
| Featured Product | XR76203-05-08 Step-Down Regulators | |
| Online Catalog | XR76203, XR76205 and XR76208 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Exar Corporation | |
| Series | PowerBlox™ | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V | |
| Current - Output | 8A | |
| Voltage - Input | 5 V ~ 40 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | XR76208 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XR76208EVB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XR76208EVB is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XR76208EVB is new and unused, you can buy XR76208EVB Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XR76208EVB.
