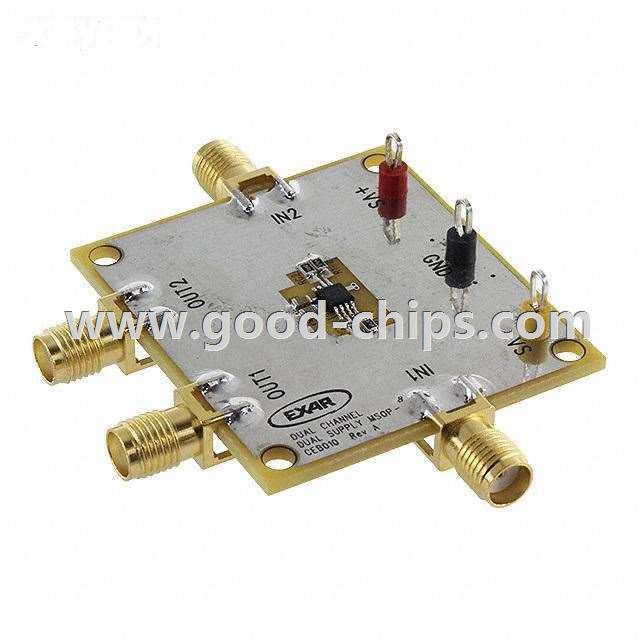

| Manufacturer Part Number: | XR2009IMP8EVB |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | XR2009 2 - Dual Channels per IC Voltage Feedback Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XR2009IMP8EVB Datasheet |
| Internal Part Number | 898-XR2009IMP8EVB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | XR1009 and XR2009 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Exar Corporation | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 2 - Dual | |
| Amplifier Type | Voltage Feedback | |
| Output Type | Single-Ended, Rail-to-Rail | |
| Slew Rate | 27 V/µs | |
| -3db Bandwidth | 35MHz | |
| Current - Output / Channel | 8.5mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Current - Supply (Main IC) | 208µA | |
| Voltage - Supply, Single/Dual (±) | 2.5 V ~ 5.5 V, ±1.25 V ~ 2.75 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | XR2009 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XR2009IMP8EVB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XR2009IMP8EVB is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XR2009IMP8EVB is new and unused, you can buy XR2009IMP8EVB Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XR2009IMP8EVB.
