| Manufacturer Part Number: | XR19L402IL48-F |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | Interface - UARTs (Universal Asynchronous Receiver Transmitter) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC UART/TXRX RS485 48QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XR19L402IL48-F Datasheet |
| Internal Part Number | 898-XR19L402IL48-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 31/Aug/2015 | |
| PCN Other | Multiple Changes 02/Apr/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - UARTs (Universal Asynchronous Receiver Transmitter) | |
| Manufacturer | Exar Corporation | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Features | Internal Oscillator, Timer/Counter | |
| Number of Channels | 2, DUART | |
| FIFO's | 64 Byte | |
| Protocol | RS485 | |
| Data Rate (Max) | 8Mbps | |
| Voltage - Supply | 3.3V, 5V | |
| With Auto Flow Control | Yes | |
| With IrDA Encoder/Decoder | Yes | |
| With False Start Bit Detection | Yes | |
| With Modem Control | Yes | |
| Mounting Type | Surface Mount | |

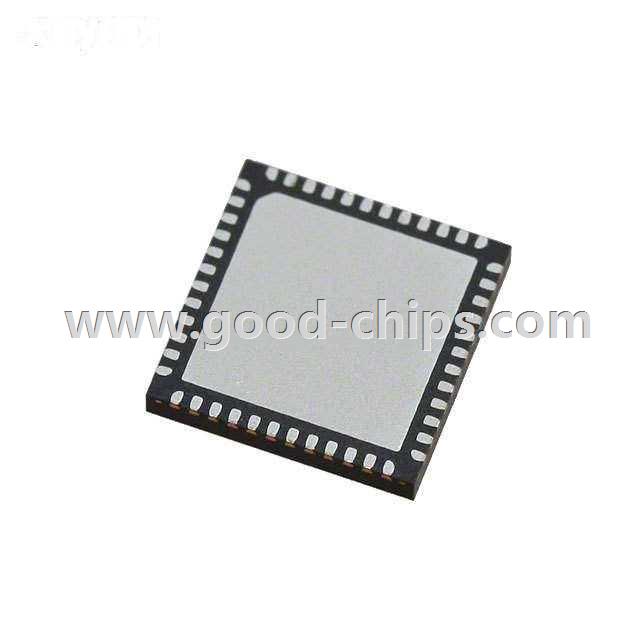

| Package / Case | 48-VFQFN Exposed Pad | |
| Supplier Device Package | 48-QFN-EP (7x7) | |
| Standard Package | 260 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XR19L402IL48-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XR19L402IL48-F is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XR19L402IL48-F is new and unused, you can buy XR19L402IL48-F Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XR19L402IL48-F.
