| Manufacturer Part Number: | XR16M681IB25-F |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | Interface - UARTs (Universal Asynchronous Receiver Transmitter) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC UART FIFO 64B 25BGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XR16M681IB25-F Datasheet |
| Internal Part Number | 898-XR16M681IB25-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 03/Oct/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - UARTs (Universal Asynchronous Receiver Transmitter) | |
| Manufacturer | Exar Corporation | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Features | Internal Oscillator, Timer/Counter | |
| Number of Channels | 1, UART | |
| FIFO's | 32 Byte | |
| Protocol | RS232, RS422, RS485 | |
| Data Rate (Max) | 20Mbps | |
| Voltage - Supply | 1.62 V ~ 3.63 V | |
| With Auto Flow Control | Yes | |
| With IrDA Encoder/Decoder | Yes | |
| With False Start Bit Detection | Yes | |
| With Modem Control | Yes | |
| Mounting Type | Surface Mount | |

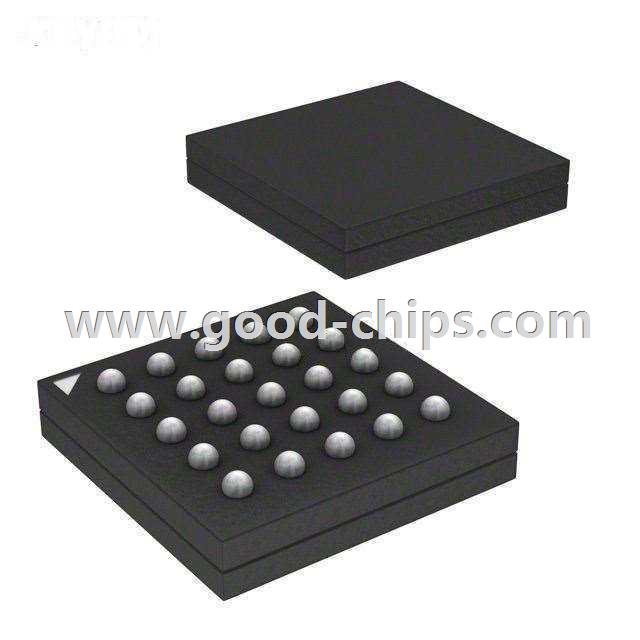

| Package / Case | 25-WFBGA | |
| Supplier Device Package | 25-BGA (3x3) | |
| Standard Package | 714 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XR16M681IB25-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XR16M681IB25-F is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XR16M681IB25-F is new and unused, you can buy XR16M681IB25-F Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XR16M681IB25-F.
