| Manufacturer Part Number: | XR16C854CQ-F |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | Interface - UARTs (Universal Asynchronous Receiver Transmitter) |
| Available Quantity: | 9958 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC UART FIFO 128B QUAD 100QFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XR16C854CQ-F Datasheet |
| Internal Part Number | 898-XR16C854CQ-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Datasheet Update 02/Jul/2013 | |
| PCN Assembly/Origin | Assembly Site Add 29/Jul/2016 | |
| PCN Other | Multiple Changes 03/Oct/2013 | |
| Online Catalog | UARTs | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - UARTs (Universal Asynchronous Receiver Transmitter) | |
| Manufacturer | Exar Corporation | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Features | Internal Oscillator, Timer/Counter | |
| Number of Channels | 4, QUART | |
| FIFO's | 128 Byte | |
| Protocol | RS232, RS485 | |
| Data Rate (Max) | 2Mbps | |
| Voltage - Supply | 2.97 V ~ 5.5 V | |
| With Auto Flow Control | Yes | |
| With IrDA Encoder/Decoder | Yes | |
| With False Start Bit Detection | Yes | |
| With Modem Control | Yes | |
| Mounting Type | Surface Mount | |

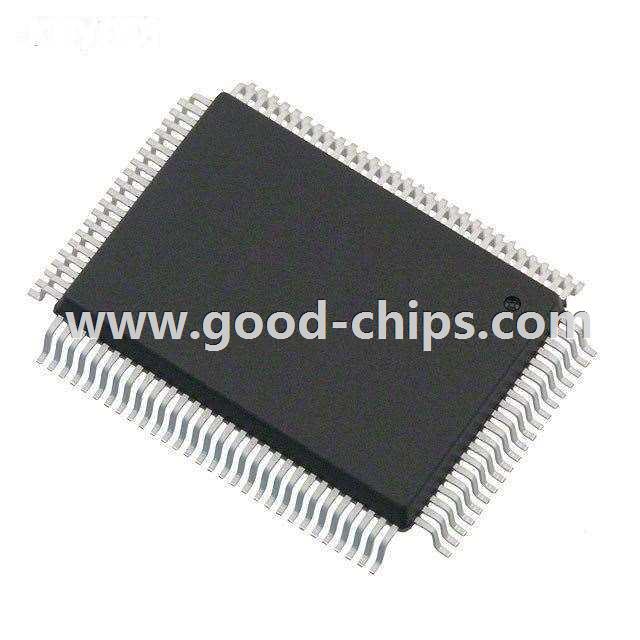

| Package / Case | 100-BQFP | |
| Supplier Device Package | 100-QFP (14x20) | |
| Standard Package | 66 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XR16C854CQ-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XR16C854CQ-F is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XR16C854CQ-F is new and unused, you can buy XR16C854CQ-F Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XR16C854CQ-F.
