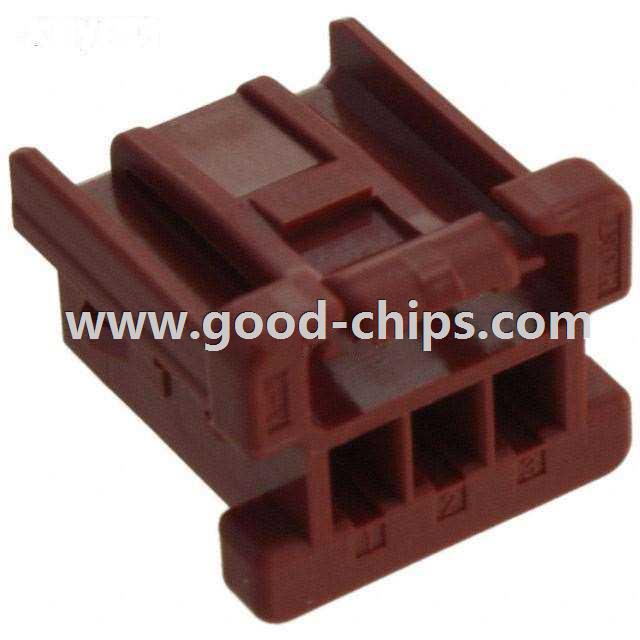

| Manufacturer Part Number: | XMAP-03V-2-R(M8AM) |
|---|---|
| Manufacturer: | JST Sales America Inc. |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 9087 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3 Position Rectangular Housing Connector Plug Red 0.098" (2.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XMAP-03V-2-R(M8AM) Datasheet |
| Internal Part Number | 898-XMAP-03V-2-R(M8AM) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | XMA Wire-to-Wire Crimp Style Connector | |
| Featured Product | XMA Series Wire-to-Wire | |
| Online Catalog | XMA Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | JST Sales America Inc. | |
| Series | XMA | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug | |
| Contact Type | Female Socket | |
| Number of Positions | 3 | |
| Pitch | 0.098" (2.50mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | Latch Lock | |
| Color | Red | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XMAP-03V-2-R(M8AM) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XMAP-03V-2-R(M8AM) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of XMAP-03V-2-R(M8AM) is new and unused, you can buy XMAP-03V-2-R(M8AM) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XMAP-03V-2-R(M8AM).
